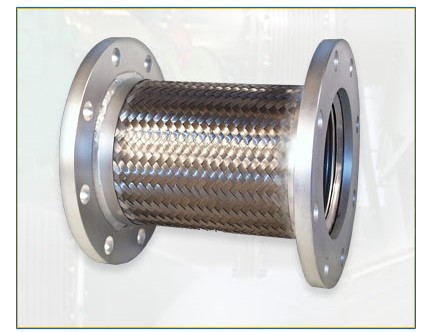

OVERVIEW: Hosecraft USA stocks standard size carbon steel flanged stainless steel braided flexible connectors, used mostly as pump and other equipment flexible connectors to absorb vibration and lateral movements. Stock sizes are 2" to 14".
In addition to the stock size/fittings shown here, other specials of any length and fittings can be quickly fabricated. Contact the factory for a quotation.
FEATURES:

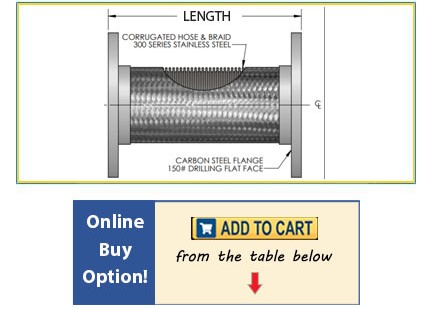

Kept in stock, with specials available Economical Does not require tie rods 150# steel plate flanges
APPLICATIONS:
Minimizing vibration and accommodating lateral movements as a flexible pump and other equipment connector for steel piping Adding lateral movement capacity for any steel piping
TEMPERATURE: to 1200°F, Note Pressure Derating
scroll to see more products
NAME
DIA (in)
LNGTH (in)
PRES (psi)
INLET (in)
WT (lbs)
P/N
PRICE ($)
2 X 9 FLANGED BRD CNCTR 2 9 345 150# C/S PLT FLG 9 FFSC0200 $111.00
Add to Cart
2.5 X 9 FLANGED BRD CNCTR 2 1/2 9 345 150# C/S PLT FLG 13 FFSC0250 $152.00
Add to Cart
3 X 9 FLANGED BRD CNCTR 3 9 289 150# C/S PLT FLG 14 FFSC0300 $154.00
Add to Cart
4 X 9 FLANGED BRD CNCTR 4 9 300 150# C/S PLT FLG 18 FFSC0400 $205.00
Add to Cart
5 X 11 FLANGED BRD CNCTR 5 11 220 150# C/S PLT FLG 25 FFSC0500 $306.00
Add to Cart
6 X 11 FLANGED BRD CNCTR 6 11 200 150# C/S PLT FLG 28 FFSC0600 $354.00
Add to Cart
8 X 12 FLANGED BRD CNCTR 8 12 190 150# C/S PLT FLG 52 FFSC0800 $657.00
Add to Cart
10 X 13 FLANGED BRD CNCTR 10 13 150 150# C/S PLT FLG 75 FFSC1000 $868.00
Add to Cart
12 X 14 FLANGED BRD CNCTR 12 14 125 150# C/S PLT FLG 105 FFSC1200 $1,355.00
Add to Cart
14 X 14 FLANGED BRD CNCTR 14 14 105 150# C/S PLT FLG 115 FFSC1400 $2,093.00
Add to Cart
