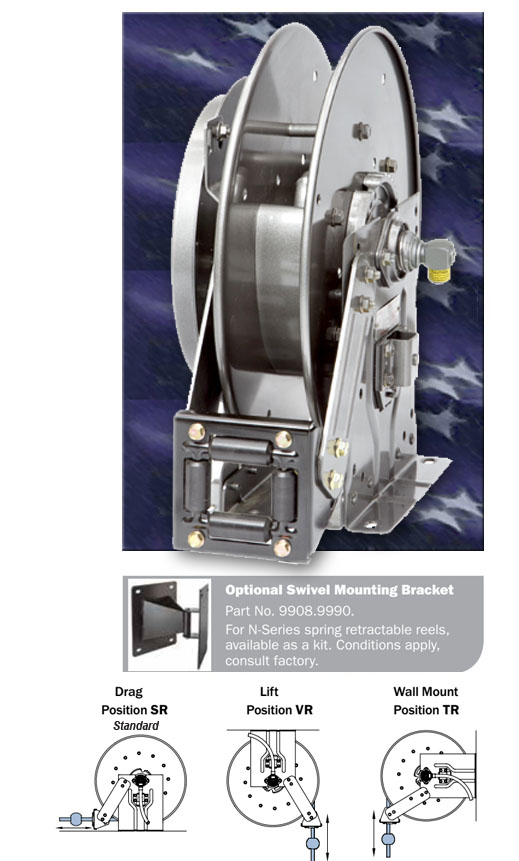

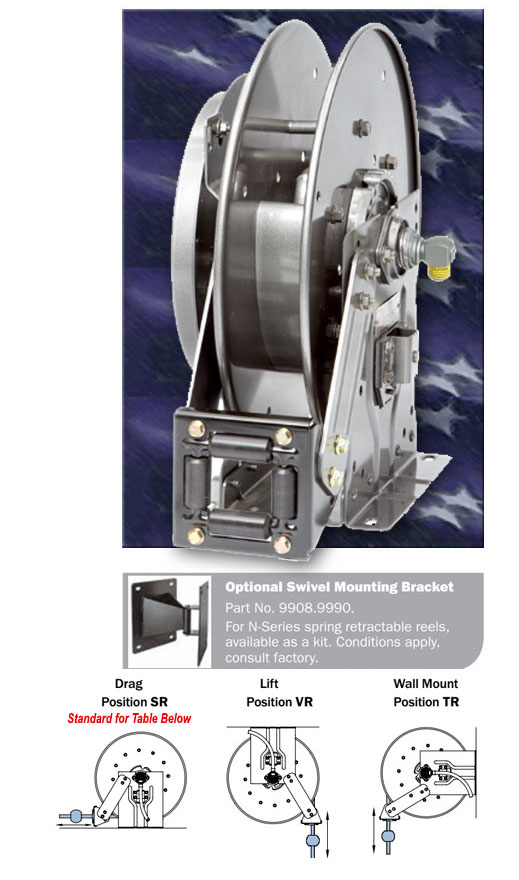

OVERVIEW: The N500, N700, N800 and 900 families of spring rewind hose reels of different size capacities are the best quality available. They are compact and handle higher pressures, with many superior features. The various models allow for 1/4" to 1-1/2" diameter hoses for many different lengths. You can't buy a better reel!
The part numbers for the standard SR configurations are in the table below. See the Submittal Sheets for additional details and options.
FEATURES:
- Declutching Arbor to Prevent Damage from Reverse Winding
- 4-way Roller Assembly
- Compact Frame and Narrow Base
- Non-sparking Ratchet Assembly
- Steel Materials (Stainless Optional) with High Quality Coating
- Optional Inlets Available - Constant Tensision is Available - Contact Factory
- Note that a Hose Ball Stop is Required and Included for All Spring Rewind Reels
scroll to see more products
| NAME |
INLET (in)
|
OUTLET (in)
|
CAPACITY (ft)
|

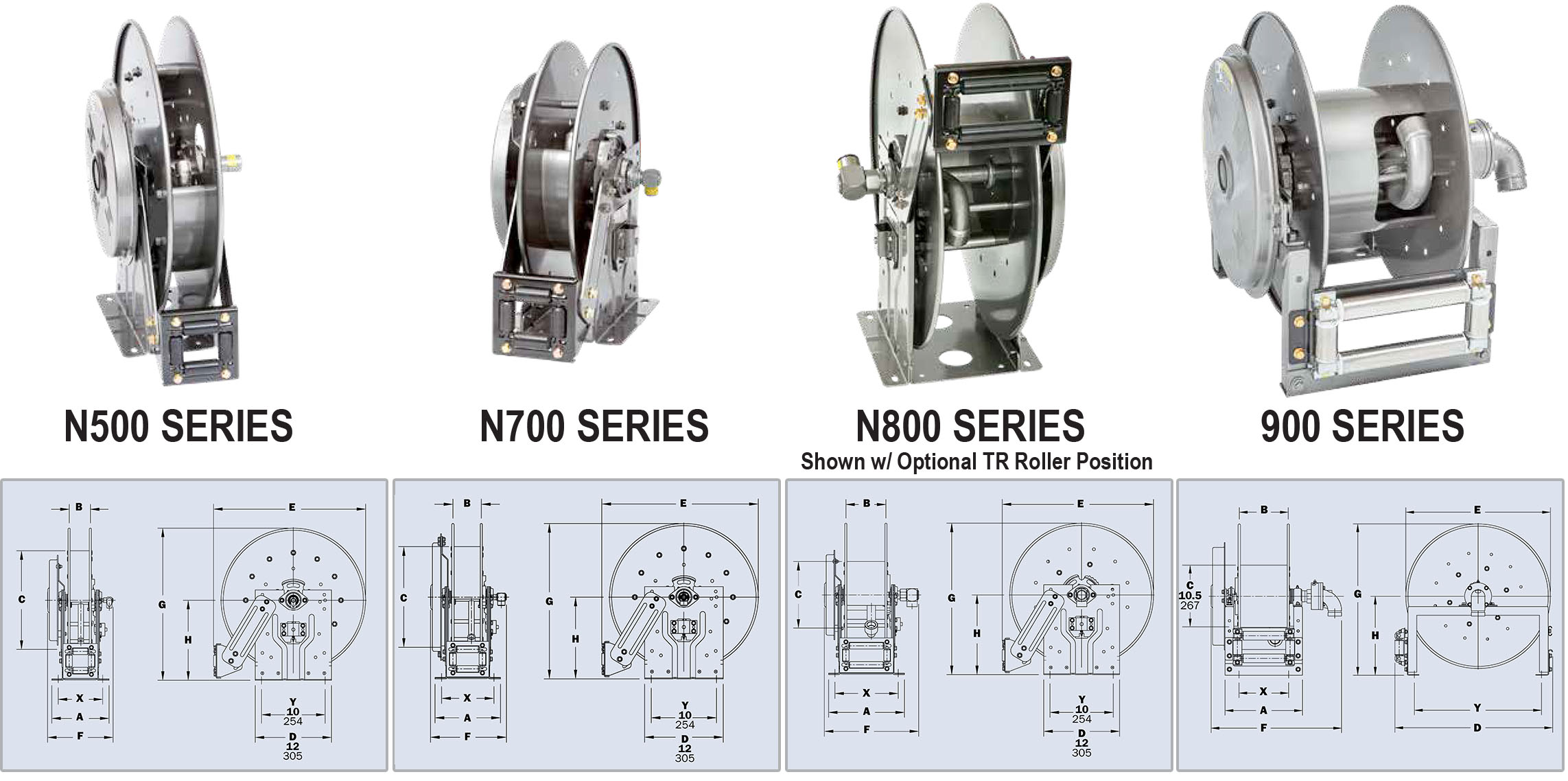

A | B | C | D | E | F | G | H | NOTE |
WT (lbs)
|
DIM WT (lbs)
|
P/N |
PRICE ($)
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N500 SERIES | 3/8" FNPT | 3/8" FNPT | 1/4"-25', 3/8"-25' | 9.00 | 3 | 8.0 | 12.00 | 18.12 | 10.38 | 16.12 | 9.12 | SR Std Position | 48 | 64 | HR-N515-14-16-8L | $611.90 | Add to Cart |
| N500 SERIES | 3/8" FNPT | 3/8" FNPT | 1/4"-35', 3/8"-35' | 9.00 | 3 | 10.5 | 12.00 | 19.00 | 10.38 | 17.00 | 9.12 | SR Std Position | 51 | 67 | HR-N515-16-17-10.5C | $665.00 | Add to Cart |
| N500 SERIES | 3/8" FNPT | 3/8" FNPT | 1/4"-50', 3/8"-50' | 9.00 | 3 | 10.5 | 12.00 | 20.75 | 10.38 | 20.00 | 10.62 | SR Std Position | 63 | 81 | HR-N515-19-20-10.5J | $798.00 | Add to Cart |
| N500 SERIES | 3/8" FNPT | 3/8" FNPT | 1/4"-75', 3/8"-75' | 9.00 | 3 | 15.5 | 12.00 | 20.75 | 10.38 | 20.00 | 10.62 | SR Std Position | 75 | 92 | HR-N515-23-24-15.5J | $877.80 | Add to Cart |
| N700 SERIES | 1/2" FNPT | 1/2" FNPT | 3/8"-25', 1/2"-25' | 10.00 | 4 | 8.0 | 12.00 | 18.12 | 11.63 | 16.12 | 9.12 | SR Std Position | 52 | 64 | HR-N716-14-16-8C | $538.66 | Add to Cart |
| N700 SERIES | 1/2" FNPT | 1/2" FNPT | 3/8"-35', 1/2"-35' | 10.00 | 4 | 10.5 | 12.00 | 19.00 | 11.63 | 17.00 | 9.12 | SR Std Position | 55 | 69 | HR-N716-16-17-10.5C | $665.00 | Add to Cart |
| N700 SERIES | 1/2" FNPT | 1/2" FNPT | 3/8"-50', 1/2"-50' | 10.00 | 4 | 10.5 | 12.00 | 20.75 | 11.63 | 20.00 | 10.62 | SR Std Position | 64 | 82 | HR-N716-19-20-10.5J | $831.25 | Add to Cart |
| N700 SERIES | 1/2" FNPT | 1/2" FNPT | 3/8"-65', 1/2"-65' | 10.00 | 4 | 15.5 | 12.00 | 24.00 | 11.63 | 24.00 | 12.62 | SR Std Position | 79 | 94 | HR-N716-23-24-15.5J | $884.45 | Add to Cart |
| N700 SERIES | 1/2" FNPT | 1/2" FNPT | 3/8"-75', 1/2"-65' | 10.00 | 4 | 15.5 | 12.00 | 24.00 | 11.63 | 24.00 | 12.62 | SR Std Position | 94 | 101 | HR-N716-23-24-15.5G | $1,130.50 | Add to Cart |
| N700 SERIES | 1/2" FNPT | 1/2" FNPT | 3/8"-75', 1/2"-75' | 10.00 | 4 | 15.5 | 12.00 | 25.50 | 11.63 | 26.00 | 13.62 | SR Std Position | 90 | HR-N716-25-26-15.5B | $1,163.75 | Add to Cart | |
| N700 SERIES | 1/2" FNPT | 1/2" FNPT | 3/8"-100', 1/2"-100' | 12.00 | 6 | 15.5 | 12.00 | 25.50 | 13.63 | 26.00 | 13.62 | SR Std Position | 96 | HR-N718-25-26-15.5G | $1,210.30 | Add to Cart | |
| N800 SERIES | 1" FNPT | 1" FNPT | 3/4"-25', 1"-15' | 10.00 | 4 | 10.5 | 12.00 | 20.75 | 13.00 | 20.00 | 10.62 | SR Std Position | 91 | HR-N816-19-20-10.5J | $935.00 | Add to Cart | |
| N800 SERIES | 1" FNPT | 1" FNPT | 3/4"-50', 1"-25' | 12.00 | 6 | 10.5 | 12.00 | 24.00 | 15.00 | 24.00 | 12.62 | SR Std Position | 100 | HR-N818-23-24-10.5J | $988.20 | Add to Cart | |
| N800 SERIES | 1" FNPT | 1" FNPT | 3/0"-25', 1"-35' | 10.00 | 4 | 10.5 | 12.00 | 25.50 | 13.00 | 26.00 | 13.62 | SR Std Position | 131 | HR-N816-25-26-10.5B | $1,260.84 | Add to Cart | |
| N800 SERIES | 1" FNPT | 1" FNPT | 3/4"-70', 1"-50' | 12.00 | 6 | 10.5 | 12.00 | 25.50 | 15.00 | 26.00 | 13.62 | SR Std Position | 137 | HR-N818-25-26-10.5B | $1,260.84 | Add to Cart | |
| N900 SERIES | 1-1/2" FNPT | 1-1/2" FNPT | 1-1/4"-40',1-1/2"-25 | 15.25 | 10 | 10.5 | 25.25 | 22.75 | 24.00 | 23.88 | 12.50 | SR Std Position | 139 | HR-922-23-24B | $1,787.53 | Add to Cart | |
| N900 SERIES | 1-1/2" FNPT | 1-1/2" FNPT | 1-1/4"-50',1-1/2"-40 | 13.25 | 8 | 10.5 | 27.00 | 24.75 | 22.75 | 25.88 | 13.50 | SR Std Position | 162 | HR-920-25-26A | $2,053.53 | Add to Cart | |
| N900 SERIES | 1-1/2" FNPT | 1-1/2" FNPT | 1-1/4"-75',1-1/2"-50 | 15.25 | 10 | 10.5 | 30.50 | 28.75 | 24.75 | 31.38 | 17.00 | SR Std Position | 191 | HR-922-30-31-10.5A | $2,153.28 | Add to Cart |
