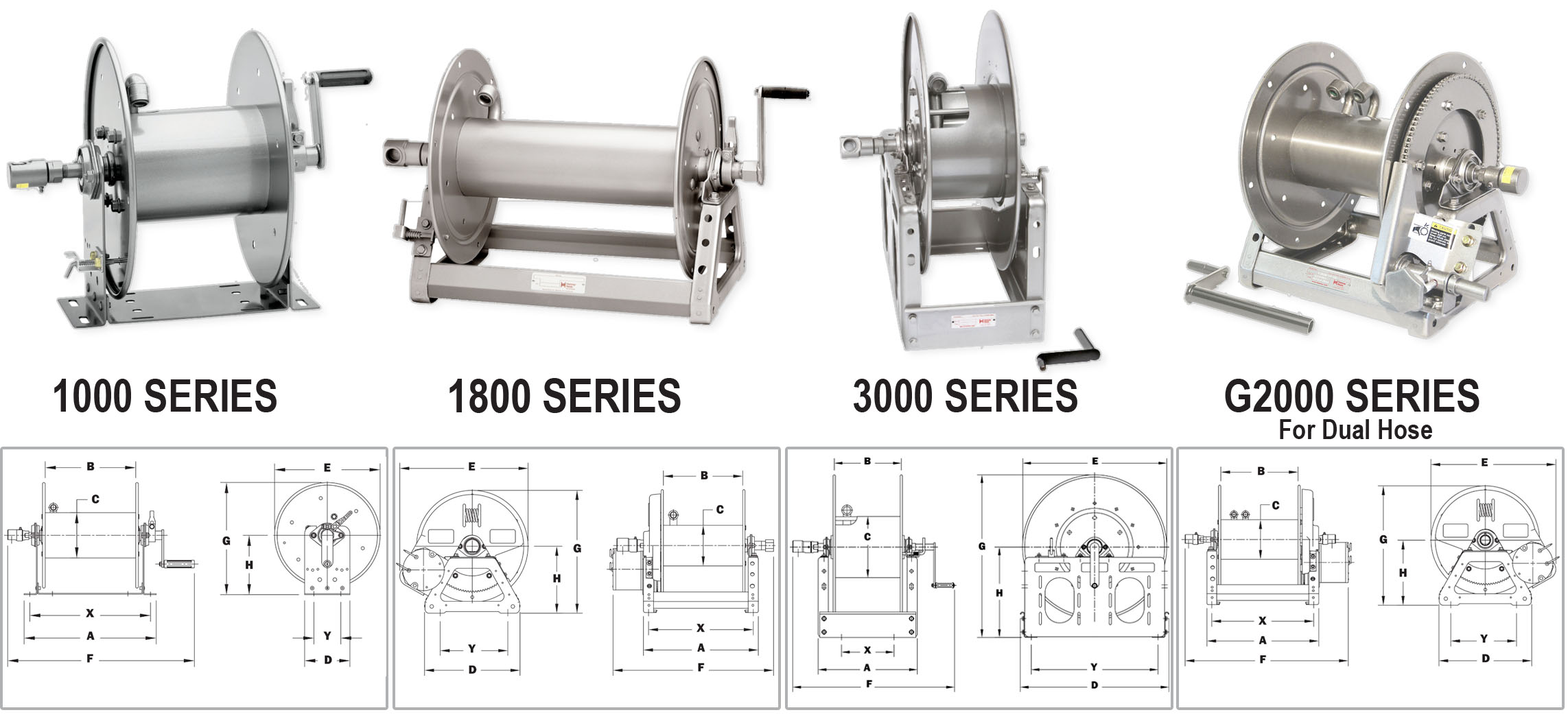

OVERVIEW: The 1000, 2000, 3000, and 3500 family of manual rewind hose reels are the best quality available. There are many choices, all with high end features.
To choose the reel that is right for you, either review the hose reel submittal sheets, fill out and fax the hose reel worksheet, or give us a call.
The part numbers for standard configurations available for quick purchase are shown in the table below. See the Submittal Sheets for additional details and options.
FEATURES:
- Large Variety of Capacities for Different Hose Sizes
- Some Direct Crank, Some Gear Assisted
- Adjustable Cam-Lock Brake
- High Pressures
- Top-End Hardware
- Quality E-Coated Frame
scroll to see more products
| NAME |
INLET (in)
|
OUTLET (in)
|
CAPACITY (ft)
|
A | B | C | D | E | F | G | H |
WT (lbs)
|
DIM WT (lbs)
|
P/N |
PRICE ($)
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1000 SERIES | 1/2" FEM NPT | 1/2" FEM NPT | 1/4"-100', 1/2"-40' | 11.5 | 6.0 | 6.0 | 6.00 | 14.00 | 18.75 | 14.88 | 7.88 | 23 | 42 | HR-1014-14-16 | $365.76 | Add to Cart |
| 1000 SERIES | 1/2" FEM NPT | 1/2" FEM NPT | 1/4"-150', 1/2"-70' | 13.5 | 8.0 | 6.0 | 6.00 | 14.00 | 20.75 | 14.88 | 7.88 | 24 | 42 | HR-1016-14-16 | $352.45 | Add to Cart |
| 1000 SERIES | 1/2" FEM NPT | 1/2" FEM NPT | 3/8"-175', 1/2"-100' | 17.5 | 12.0 | 6.0 | 6.00 | 14.00 | 16.00 | 14.88 | 7.88 | 25 | 42 | HR-1020-14-16 | $352.45 | Add to Cart |
| 1800 SERIES | 1" FEM NPT | 3/4" FEM NPT | 5/8"-75', 3/4"-50' | 13.0 | 18.0 | 6.0 | 14.12 | 17.50 | 23.50 | 18.12 | 9.88 | 28 | 80 | HR-1816-17-18 | $558.60 | Add to Cart |
| 1800 SERIES | 1" FEM NPT | 3/4" FEM NPT | 5/8"-150', 3/4"-100 | 19.0 | 14.0 | 6.0 | 14.12 | 17.50 | 29.50 | 18.12 | 9.88 | 30 | 98 | HR-1822-17-18 | $558.60 | Add to Cart |
| 1800 SERIES | 1" FEM NPT | 1/2" FEM NPT | 5/8"-200', 3/4"-125' | 23.0 | 18.0 | 6.0 | 14.12 | 17.50 | 33.50 | 18.12 | 9.88 | 32 | 98 | HR-1826-17-18 | $558.60 | Add to Cart |
| 1800 SERIES | 1" FEM NPT | 1/2" FEM NPT | 5/8"-250', 3/4"-150' | 27.0 | 22.0 | 6.0 | 14.12 | 17.50 | 37.50 | 18.12 | 9.88 | 33 | 110 | HR-1830-17-18 | $558.60 | Add to Cart |
| 1800 SERIES | 1" FEM NPT | 1/2" FEM NPT | 5/8"-300', 3/4"-200' | 33.0 | 28.0 | 6.0 | 14.12 | 17.50 | 43.50 | 18.12 | 9.88 | 36 | 129 | HR-1836-17-18 | $558.60 | Add to Cart |
| 3000 SERIES | 1" FEM NPT | 1" FEM NPT | 3/4"-100', 1"-75' | 13.0 | 7.5 | 10.5 | 25.50 | 24.75 | 24.50 | 27.88 | 15.50 | 120 | HR-3016-25-26 | $1,010.80 | Add to Cart | |
| 3000 SERIES | 1" FEM NPT | 1" FEM NPT | 3/4"-150', 1"-100' | 17.0 | 11.5 | 10.5 | 25.50 | 24.75 | 28.50 | 27.88 | 15.50 | 129 | HR-3020-25-26 | $1,010.80 | Add to Cart | |
| 3000 SERIES | 1" FEM NPT | 1" FEM NPT | 3/4"-200', 1"-125' | 21.0 | 15.5 | 10.5 | 25.50 | 24.75 | 32.50 | 27.88 | 15.50 | 138 | HR-3024-25-26 | $1,010.80 | Add to Cart | |
| 3000 SERIES | 1" FEM NPT | 1" FEM NPT | 3/4"-275', 1"-175; | 25.5 | 20.0 | 10.5 | 25.50 | 24.75 | 37.00 | 27.88 | 15.50 | 155 | HR-3028-25-26 | $1,010.80 | Add to Cart | |
| G2000 SERIES | (2) 1/2" FEM NPT | (2) 1/2" FEM NPT | 1/4"-75', 1/2"-35' | 13.0 | 8.0 | 8.0 | 14.12 | 18.00 | 18.88 | 18.12 | 9.88 | 40 | 80 | HR-G2016-17-18-8 | $871.15 | Add to Cart |
| G2000 SERIES | (2) 1/2" FEM NPT | (2) 1/2" FEM NPT | 1/4"-125', 1/2"-50' | 17.0 | 12.0 | 8.0 | 14.12 | 18.00 | 18.12 | 18.12 | 9.88 | 42 | 98 | HR-G2020-17-18-8 | $871.15 | Add to Cart |
| G2000 SERIES | (2) 1/2" FEM NPT | (2) 1/2" FEM NPT | 1/4"-200', 1/2"-100' | 23.0 | 18.0 | 8.0 | 14.12 | 18.00 | 22.88 | 18.12 | 9.88 | 44 | 110 | HR-G2026-17-18-8 | $871.15 | Add to Cart |
