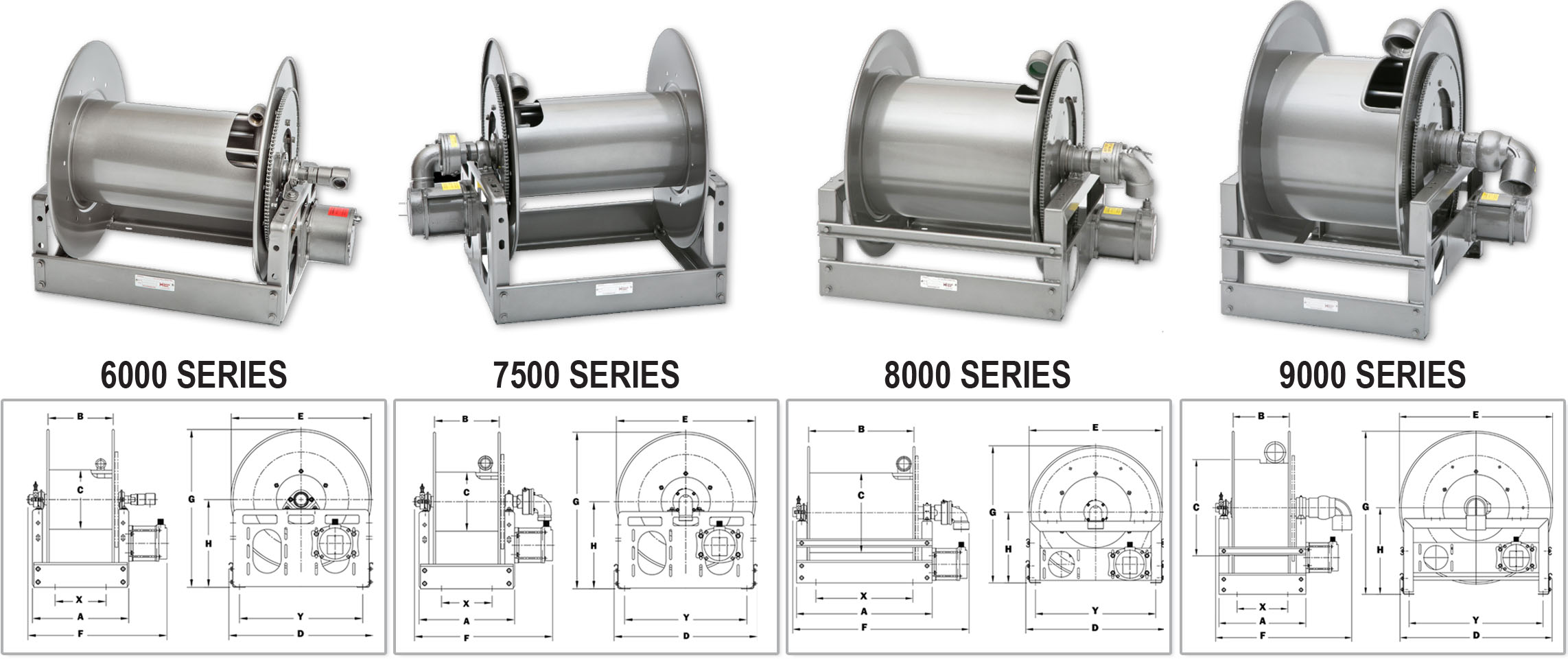

OVERVIEW: The 6000P, 7500P, 8000P, and 9000P family of power rewind hose reels are the best quality available. You can't buy a better reel!
There are many choices, all with high end features that are designed for longer lengths of hose, from 3/4" to 3" diameters in this group.Smaller power hose reels are seen here.
Choose reels powered by an electric (EP), hydraulic (HP), or compressed air (A) motors. The below table with pricing shows the EP choices for 12V DC only for quick purchase, which includes switch and solinoid. For electric power with 115V AC power, or for air or hydraulic power, contact factory.
See the Submittal Sheets for additional choices and details.
FEATURES:
- High Quality Design for Longer Lengths and Larger Diameter Hoses
- Variety Allows for Correct Reel Size and Features
- Chain & Sprocket Drives are powered by Electric, Hydraulic or Air Motors
- Heavy-duty Components and Quality Coating
scroll to see more products
| NAME | TYPE |
PRES (psi)
|
INLET (in)
|
OUTLET (in)
|
CAPACITY (ft)
|
A | B | C | D | E | F | G | H |
WT (lbs)
|
P/N |
PRICE ($)
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6000 SERIES | 12V DC ELECT | 2000 | 1" FEM NPT | 1" FEM NPT | 3/4"-100', 1"-60' | 21.00 | 15.5 | 10.5 | 20.5 | 18.75 | 28.50 | 21.50 | 12.12 | 85 | HR-EP6024-19-21 | $1,881.96 | Add to Cart |
| 6000 SERIES | 12V DC ELECT | 2000 | 1" FEM NPT | 1" FEM NPT | 3/4"-175', 1"-85' | 29.50 | 24.0 | 10.5 | 20.5 | 18.75 | 37.00 | 21.50 | 12.12 | 102 | HR-EP6032-19-21 | $1,881.96 | Add to Cart |
| 6000 SERIES | 12V DC ELECT | 2000 | 1" FEM NPT | 1" FEM NPT | 3/4"-150', 1"-125' | 21.00 | 15.5 | 10.5 | 20.5 | 22.75 | 28.50 | 23.50 | 12.12 | 92 | HR-EP6024-23-24 | $1,881.96 | Add to Cart |
| 6000 SERIES | 12V DC ELECT | 2000 | 1" FEM NPT | 1" FEM NPT | 3/4"-225', 1"-200' | 27.50 | 22.0 | 10.5 | 20.5 | 22.75 | 35.00 | 23.50 | 12.12 | 105 | HR-EP6030-23-24 | $1,881.96 | Add to Cart |
| 6000 SERIES | 12V DC ELECT | 2000 | 1" FEM NPT | 1" FEM NPT | 3/4"-300', 1"-250' | 35.00 | 29.5 | 10.5 | 20.5 | 22.75 | 42.50 | 23.50 | 12.12 | 120 | HR-EP6038-23-24 | $1,881.96 | Add to Cart |
| 6000 SERIES | 12V DC ELECT | 2000 | 1" FEM NPT | 1" FEM NPT | 3/4"-100', 1"-75' | 13.00 | 7.5 | 10.5 | 25.5 | 24.75 | 20.50 | 27.88 | 15.50 | 88 | HR-EP6016-25-26 | $1,941.80 | Add to Cart |
| 6000 SERIES | 12V DC ELECT | 2000 | 1" FEM NPT | 1" FEM NPT | 3/4"-175', 1"-125' | 19.00 | 13.5 | 10.5 | 25.5 | 24.75 | 26.50 | 27.88 | 15.50 | 100 | HR-EP6022-25-26 | $1,941.80 | Add to Cart |
| 6000 SERIES | 12V DC ELECT | 2000 | 1" FEM NPT | 1" FEM NPT | 3/4"-275', 1"-175' | 25.50 | 20.0 | 10.5 | 25.5 | 24.75 | 33.00 | 27.88 | 15.50 | 113 | HR-EP6028-25-26 | $1,941.80 | Add to Cart |
| 6000 SERIES | 12V DC ELECT | 2000 | 1" FEM NPT | 1" FEM NPT | 3/4"-200', 1"-150' | 15.00 | 9.5 | 10.5 | 25.5 | 28.75 | 22.50 | 29.88 | 15.50 | 101 | HR-EP6018-30-31 | $1,941.80 | Add to Cart |
| 6000 SERIES | 12V DC ELECT | 2000 | 1" FEM NPT | 1" FEM NPT | 3/4"-350', 1"-250' | 21.00 | 15.5 | 10.5 | 25.5 | 28.75 | 28.50 | 29.88 | 15.50 | 113 | HR-EP6024-30-31 | $1,941.80 | Add to Cart |
| 6000 SERIES | 12V DC ELECT | 2000 | 1" FEM NPT | 1" FEM NPT | 1"-300' | 25.50 | 20.0 | 10.5 | 25.5 | 28.75 | 33.00 | 29.88 | 15.50 | 121 | HR-EP6028-30-31 | $1,941.80 | Add to Cart |
| 6000 SERIES | 12V DC ELECT | 2000 | 1" FEM NPT | 1" FEM NPT | 1"-400' | 25.00 | 20.0 | 10.5 | 31.5 | 31.75 | 33.06 | 33.63 | 17.75 | 129 | HR-EP6028-33-34 | $2,101.40 | Add to Cart |
| 7500 SERIES | 12V DC ELECT | 1000 | 1-1/2" FEM NPT | 1-1/2" FEM NPT | 1-1/4"-70,1-1/2"-50 | 25.50 | 20.0 | 10.5 | 20.5 | 18.75 | 33.00 | 21.50 | 12.12 | 104 | HR-EP-7528-19-21 | $2,201.16 | Add to Cart |
| 7500 SERIES | 12V DC ELECT | 1000 | 1-1/2" FEM NPT | 1-1/2" FEM NPT | 1-1/4"-175,1-1/2"-10 | 35.00 | 29.5 | 10.5 | 20.5 | 22.75 | 42.50 | 23.50 | 12.12 | 130 | HR-EP-7538-23-24 | $2,201.16 | Add to Cart |
| 7500 SERIES | 12V DC ELECT | 1000 | 1-1/2" FEM NPT | 1-1/2" FEM NPT | 1-1/4"-75,1-1/2"-50 | 17.00 | 11.5 | 10.5 | 25.5 | 24.75 | 24.50 | 27.88 | 15.50 | 106 | HR-EP-7520-25-26 | $2,261.00 | Add to Cart |
| 7500 SERIES | 12V DC ELECT | 1000 | 1-1/2" FEM NPT | 1-1/2" FEM NPT | 1-1/4"-125,1-1/2"-10 | 25.50 | 20.0 | 10.5 | 25.5 | 24.75 | 33.00 | 27.88 | 15.50 | 123 | HR-EP-7528-25-26 | $2,261.00 | Add to Cart |
| 7500 SERIES | 12V DC ELECT | 1000 | 1-1/2" FEM NPT | 1-1/2" FEM NPT | 1-1/4"-125,1-1/2"-10 | 19.00 | 13.5 | 10.5 | 25.5 | 28.75 | 26.50 | 29.88 | 15.50 | 118 | HR-EP-7522-30-31 | $2,261.00 | Add to Cart |
| 7500 SERIES | 12V DC ELECT | 1000 | 1-1/2" FEM NPT | 1-1/2" FEM NPT | 1-1/4"-200,1-1/2"-15 | 25.50 | 20.0 | 10.5 | 25.5 | 28.75 | 33.00 | 29.88 | 15.50 | 131 | HR-EP-7528-30-31 | $2,261.00 | Add to Cart |
| 7500 SERIES | 12V DC ELECT | 1000 | 1-1/2" FEM NPT | 1-1/2" FEM NPT | 1-1/4"-200,1-1/2"-17 | 22.50 | 17.5 | 10.5 | 34.5 | 31.75 | 30.25 | 33.62 | 17.75 | 133 | HR-EP-7526-33-34 | $2,420.60 | Add to Cart |
| 8000 SERIES | 12V DC ELECT | 600 | 2" FEM NPT | 2" FEM NPT | 1-1/2"-80, 2"-60 | 26.25 | 20.0 | 15.5 | 27.0 | 25.75 | 34.75 | 26.62 | 13.75 | 120 | HR-EP-8234-26-27 | $2,653.36 | Add to Cart |
| 8000 SERIES | 12V DC ELECT | 600 | 2" FEM NPT | 2" FEM NPT | 1-1/2"-100, 2"-75 | 30.25 | 24.0 | 15.5 | 27.0 | 25.75 | 38.75 | 26.62 | 13.75 | 145 | HR-EP-8238-26-27 | $2,653.36 | Add to Cart |
| 8000 SERIES | 12V DC ELECT | 600 | 2" FEM NPT | 2" FEM NPT | 1-1/2"-145, 2"-100 | 38.25 | 32.0 | 15.5 | 27.0 | 25.75 | 46.75 | 26.62 | 13.75 | 196 | HR-EP-8246-26-27 | $2,653.36 | Add to Cart |
| 8000 SERIES | 12V DC ELECT | 300 | 2" FEM NPT | 2" FEM NPT | 1-1/2"-85, 2"-60 | 17.75 | 11.5 | 15.5 | 31.5 | 31.75 | 26.25 | 33.38 | 17.75 | 80 | HR-EP-8226-33-34 | $2,653.36 | Add to Cart |
| 8000 SERIES | 12V DC ELECT | 300 | 2" FEM NPT | 2" FEM NPT | 1-1/2"-150, 2"-115 | 26.25 | 20.0 | 15.5 | 31.5 | 31.75 | 34.75 | 33.38 | 17.75 | 133 | HR-EP-8234-33-34 | $2,653.36 | Add to Cart |
| 8000 SERIES | 12V DC ELECT | 300 | 2" FEM NPT | 2" FEM NPT | 1-1/2"-340, 2"-225 | 30.25 | 24.0 | 15.5 | 40.0 | 39.00 | 38.75 | 39.88 | 20.38 | 218 | HR-EP-8238-39-40 | $4,196.16 | Add to Cart |
| 9000 SERIES | 12V DC ELECT | 300 | 3" FEM NPT | 3" FEM NPT | 2-1/2"-30, 3"-25 | 26.25 | 20.0 | 15.5 | 27.0 | 25.75 | 34.75 | 26.62 | 13.75 | 147 | HR-EP-9332-33-34 | $3,085.60 | Add to Cart |
| 9000 SERIES | 12V DC ELECT | 300 | 3" FEM NPT | 3" FEM NPT | 2-1/2"-45, 3"-35 | 30.25 | 24.0 | 20.0 | 31.5 | 31.75 | 39.75 | 33.88 | 18.00 | 187 | HR-EP-9338-33-34 | $3,085.60 | Add to Cart |
| 9000 SERIES | 12V DC ELECT | 300 | 3" FEM NPT | 3" FEM NPT | 2-1/2"-60, 3"-50 | 38.25 | 32.0 | 20.0 | 31.5 | 31.75 | 47.75 | 33.88 | 18.00 | 237 | HR-EP-9346-33-34 | $3,085.60 | Add to Cart |
| 9000 SERIES | 12V DC ELECT | 300 | 3" FEM NPT | 3" FEM NPT | 2-1/2"-90, 3"-80 | 30.25 | 24.0 | 20.0 | 40.0 | 39.00 | 39.75 | 40.38 | 20.88 | 239 | HR-EP-9338-39-40 | $4,628.40 | Add to Cart |
| 9000 SERIES | 12V DC ELECT | 300 | 3" FEM NPT | 3" FEM NPT | 2-1/2"-130, 3"-115 | 26.25 | 20.0 | 20.0 | 46.0 | 45.00 | 35.75 | 46.38 | 23.88 | 361 | HR-EP-9334-45-46 | $4,921.00 | Add to Cart |
