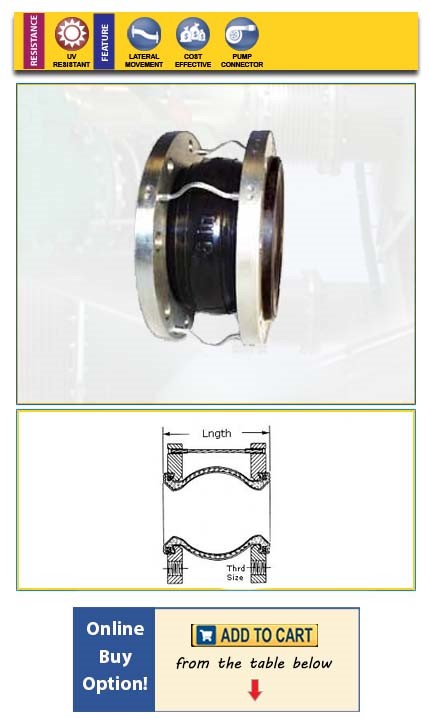

OVERVIEW: The Ultrasphere is the most widely applied rubber expanion joint available today. For a reasonable cost, it provides good pressure, temperature, and movement characteristics. It also helps to control pulsation shocks and noise transmission. No field-installed control units are required because of the cables. Neoprene, EPDM, and Nitrile rubber elastomer materials are all stocked.
FEATURES:
- Floating flanges, with either standard threaded holes for easy installation, or drilled holes
- Available in multiple rubber elastomers from stock
- Control Cables eliminate the need for tie rods
- Moves in both axial and lateral offset directions
APPLICATIONS:
- Flexible pump and other equipment connectors
- Thermal expansion and settlement for lower temperature, chemically compatible systems
TEMPERATURE: 250° F for EPDM, 225°F for Neoprene, 212°F for Nitrile (Note Pressure Derating)
See the full line of Flexicraft Industries rubber expansion joints here.
scroll to see more products
| NAME |
DIA (in)
|
LNGTH (in)
|
PRES (psi)
|
VAC (in Hg)
|
COMPR (in)
|
EXTEN (in)
|
LATERAL (in)
|
WT (lbs)
|
P/N |
PRICE ($)
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2" SPHERE RBR EXPN JNT W/ CBLS | 2 | 6 | 225 | 16 | 1/2 | 3/8 | 1/2 | 8 | USR1CEE0200 | $132.00 | Add to Cart |
| 2-1/2" SPHR RBR EXPN JNT WCBLS | 2 1/2 | 6 | 225 | 16 | 1/2 | 3/8 | 1/2 | 13 | USR1CEE0250 | $154.00 | Add to Cart |
| 3" SPHERE RBR EXPN JNT W/ CBLS | 3 | 6 | 225 | 16 | 1/2 | 3/8 | 1/2 | 14 | USR1CEE0300 | $177.00 | Add to Cart |
| 4" SPHERE RBR EXPN JNT W/ CBLS | 4 | 6 | 225 | 16 | 5/8 | 3/8 | 1/2 | 18 | USR1CEE0400 | $207.00 | Add to Cart |
| 5" SPHERE RBR EXPN JNT W/CABLS | 5 | 6 | 225 | 16 | 5/8 | 3/8 | 1/2 | 23 | USR1CEE0500 | $231.00 | Add to Cart |
| 6" SPHERE RBR EXPN JNT W/ CBLS | 6 | 6 | 225 | 16 | 5/8 | 3/8 | 1/2 | 28 | USR1CEE0600 | $256.00 | Add to Cart |
| 8" SPHERE RBR EXPN JNT W/CBLS | 8 | 6 | 225 | 16 | 5/8 | 3/8 | 1/2 | 40 | USR1CEE0800 | $474.00 | Add to Cart |
| 10" SPHERE RBR EXPN JNT W/CBLS | 10 | 8 | 225 | 16 | 3/4 | 1/2 | 3/4 | 68 | USR1CEE1000 | $753.00 | Add to Cart |
| 12" SPHERE RBR EXPN JNT W/CBLS | 12 | 8 | 225 | 16 | 3/4 | 1/2 | 3/4 | 94 | USR1CEE1200 | $947.00 | Add to Cart |
