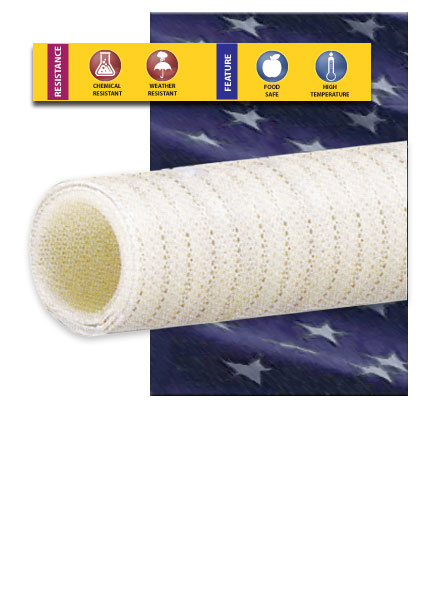

Overview: The Model CS1 VENAIR is a high quality and very sturdy sanitary silicone hose for food and pharmaceutical service. It has platinum cured high purity tube that is reinforced with polyester fabric plies and a stainless steel wire spring helix. Note pressure ratings listed are at ambient temperature, and are reduced by 20% for each increase in 212F.
Features:
- Complies with 3A Sanitary Standard 62-02, 3A 18-03
- FDA 21 CFR 117.2600
- Biological Standards
- Can be Cleaned-in-Place (CIP) by Virtually Any Method
- Higher Temperature Rating
Applications:
- Food Products
- Pharmaceutical
- CIP Systems
Temperature: -67F to 356F (Please reduce values by 20% for each increase of 212F over room temperature.)
Price & Purchase Configurator not available
scroll to see more products
|
Dia (in)
|
Pres (psi)
|
Vac (in Hg)
|
Bend R (in)
|
|---|---|---|---|
| 1/4 | 377 | 27 | 1.10 |
| 3/8 | 318 | 27 | 1.34 |
| 1/2 | 289 | 27 | 1.54 |
| 3/4 | 240 | 27 | 2.13 |
| 1 | 214 | 27 | 2.70 |
| 1 1/4 | 186 | 27 | 3.70 |
| 1 1/2 | 167 | 27 | 4.40 |
| 2 | 133 | 27 | 5.70 |
| 2 1/2 | 109 | 27 | 7.10 |
| 3 | 88 | 27 | 232.00 |
| 4 | 54 | 27 | 14.50 |
