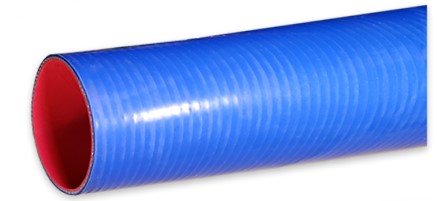

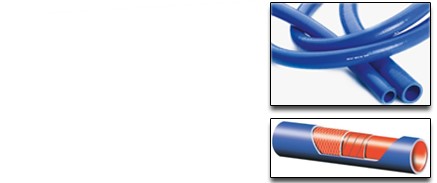

OVERVIEW: The CV2 silicone hose includes a 2nd ply of helically-wound wire to the polyester fabric ply to increase pressure ratings and resists kinking. Great for hostile ennviorments. Standard lengths of 3ft, and 12ft. 1/2" to 5" diameters.
FEATURES:
- Silicone Hose that Resists Kinking, with Good Bend Radius
- Very High Temperatures
- Resistant to Cracking, Peeling, Aging, and Ozone
APPLICATIONS:
- High Temperatures of Air, Water, Other Silicone Appropriate Chemicals
- Frequent Bending Service
- Suction Service
- Flexible Connection with Over the Pipe Fit at Higher Temperatures
TEMPERATURES: -65F to 350F
scroll to see more products
|
Dia (in)
|
Lngth-ft (ft)
|
Pres (psi)
|
Wt (lbs)
|
Product No |
Wt/Ft (lbs)
|
Price ($)
|
Lead Time (days)
|
|
|---|---|---|---|---|---|---|---|---|
| 1/2 | 3 | 200 | 0.60 | HOSE-CV2-0500-3 | 0.20 | $78.23 | 2 | Add to Cart |
| 1/2 | 12 | 200 | 2.40 | HOSE-CV2-0500-12 | 0.20 | $312.90 | 2 | Add to Cart |
| 3/4 | 3 | 200 | 0.75 | HOSE-CV2-0750-3 | 0.25 | $80.40 | 2 | Add to Cart |
| 3/4 | 12 | 200 | 3.00 | HOSE-CV2-0750-12 | 0.25 | $321.60 | 2 | Add to Cart |
| 1 | 3 | 175 | 0.90 | HOSE-CV2-1000-3 | 0.30 | $81.75 | 2 | Add to Cart |
| 1 | 12 | 175 | 3.60 | HOSE-CV2-1000-12 | 0.30 | $327.00 | 2 | Add to Cart |
| 1 1/4 | 3 | 160 | 1.11 | HOSE-CV2-1250-3 | 0.37 | $100.58 | 2 | Add to Cart |
| 1 1/4 | 12 | 160 | 4.44 | HOSE-CV2-1250-12 | 0.37 | $402.32 | 2 | Add to Cart |
| 1 1/2 | 3 | 160 | 1.29 | HOSE-CV2-1500-3 | 0.43 | $111.53 | 2 | Add to Cart |
| 1 1/2 | 12 | 160 | 5.16 | HOSE-CV2-1500-12 | 0.43 | $446.10 | 2 | Add to Cart |
| 1 3/4 | 3 | 150 | 1.50 | HOSE-CV2-1750-3 | 0.50 | $120.97 | 2 | Add to Cart |
| 1 3/4 | 12 | 150 | 6.00 | HOSE-CV2-1750-12 | 0.50 | $483.90 | 2 | Add to Cart |
| 2 | 3 | 140 | 1.68 | HOSE-CV2-2000-3 | 0.56 | $126.98 | 2 | Add to Cart |
| 2 | 12 | 140 | 6.72 | HOSE-CV2-2000-12 | 0.56 | $507.90 | 2 | Add to Cart |
| 2 1/4 | 3 | 125 | 1.92 | HOSE-CV2-2250-3 | 0.64 | $132.38 | 2 | Add to Cart |
| 2 1/4 | 12 | 125 | 7.68 | HOSE-CV2-2250-12 | 0.64 | $529.50 | 2 | Add to Cart |
| 2 1/2 | 3 | 100 | 2.13 | HOSE-CV2-2500-3 | 0.71 | $139.88 | 2 | Add to Cart |
| 2 1/2 | 12 | 100 | 8.52 | HOSE-CV2-2500-12 | 0.71 | $559.50 | 2 | Add to Cart |
| 2 3/4 | 3 | 100 | 2.34 | HOSE-CV2-2750-3 | 0.78 | $145.50 | 2 | Add to Cart |
| 2 3/4 | 12 | 100 | 9.36 | HOSE-CV2-2750-12 | 0.78 | $582.00 | 2 | Add to Cart |
| 3 | 3 | 100 | 2.49 | HOSE-CV2-3000-3 | 0.83 | $173.63 | 2 | Add to Cart |
| 3 | 12 | 100 | 9.96 | HOSE-CV2-3000-12 | 0.83 | $694.50 | 2 | Add to Cart |
| 3 1/2 | 3 | 85 | 2.91 | HOSE-CV2-3500-3 | 0.97 | $194.40 | 2 | Add to Cart |
| 3 1/2 | 12 | 85 | 11.64 | HOSE-CV2-3500-12 | 0.97 | $777.60 | 2 | Add to Cart |
| 4 | 3 | 75 | 3.33 | HOSE-CV2-4000-3 | 1.11 | $208.35 | 2 | Add to Cart |
| 4 | 12 | 75 | 13.32 | HOSE-CV2-4000-12 | 1.11 | $833.40 | 2 | Add to Cart |
| 5 | 3 | 40 | 4.14 | HOSE-CV2-5000-3 | 1.38 | $264.98 | 2 | Add to Cart |
| 5 | 12 | 40 | 16.56 | HOSE-CV2-5000-12 | 1.38 | $1,059.90 | 2 | Add to Cart |
