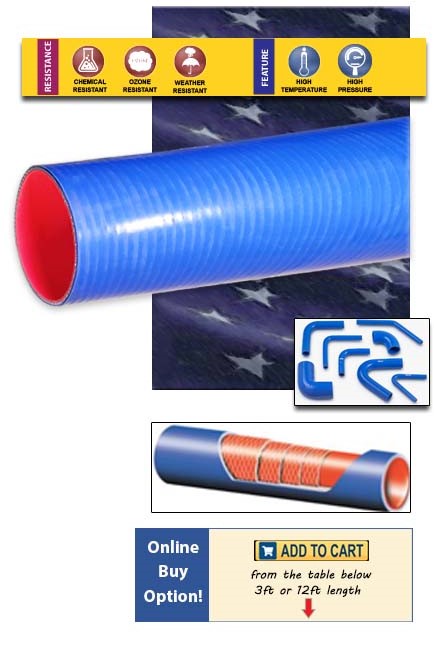

OVERVIEW: The CV4 is a 4-Ply polymer fabric reinforced silicone hose with special coating. Meets SAE J20R1 Class A Heavy Wall. Ideal for extreme temperatures and high performance for coolant and other chemicals. The CV3 Hose is also available with 3 plies for a Standard Wall. Standard lengths of 3ft and 12ft. Wide variety of diameter variations from 1/2" to 6"
FEATURES:
- Resistant to Coolant and other Chemicals
- Very High Temperatures
- Resistant to Cracking, Peeling, Aging, and Ozone
- Meets SAE J20Class A Heavy Wall Requirements
APPLICATIONS:
- Heavy Duty Coolant & Heat Systems in Hostile Enviorments
- High Temperatures of Air, Water, and Other Silicone Appropriate Chemicals
- SAE J20R1 Class A Heavy Wall
- Flexible Connection with Over the Pipe Fit at Higher Temperatures
TEMPERATURE: -65F to 350F
Price &
Purchase
Purchase
Choose details to price,
then add to your cart!
then add to your cart!
scroll to see more products
|
Dia (in)
|
Outer Dia (in)
|
Lngth-ft (ft)
|
Pres (psi)
|
Wt (lbs)
|
Product No |
Wt/Ft (lbs)
|
Price ($)
|
Lead Time (days)
|
|
|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 0.89 | 3 | 115 | 0.45 | HOSE-CV4-0500-3 | 0.15 | $46.12 | 2 | Add to Cart |
| 1/2 | 0.89 | 12 | 115 | 1.80 | HOSE-CV4-0500-12 | 0.15 | $184.50 | 2 | Add to Cart |
| 5/8 | 1.02 | 3 | 90 | 0.57 | HOSE-CV4-0625-3 | 0.19 | $49.20 | 2 | Add to Cart |
| 5/8 | 1.02 | 12 | 90 | 2.28 | HOSE-CV4-0625-12 | 0.19 | $196.80 | 2 | Add to Cart |
| 3/4 | 1.14 | 3 | 80 | 0.72 | HOSE-CV4-0750-3 | 0.24 | $56.55 | 2 | Add to Cart |
| 3/4 | 1.14 | 12 | 80 | 2.88 | HOSE-CV4-0750-12 | 0.24 | $226.20 | 2 | Add to Cart |
| 7/8 | 1.27 | 3 | 80 | 0.84 | HOSE-CV4-0875-3 | 0.28 | $57.62 | 2 | Add to Cart |
| 7/8 | 1.27 | 12 | 80 | 3.36 | HOSE-CV4-0875-12 | 0.28 | $230.46 | 2 | Add to Cart |
| 1 | 1.37 | 3 | 75 | 0.96 | HOSE-CV4-1000-3 | 0.32 | $59.18 | 2 | Add to Cart |
| 1 | 1.37 | 12 | 75 | 3.84 | HOSE-CV4-1000-12 | 0.32 | $236.70 | 2 | Add to Cart |
| 1 1/4 | 1.64 | 3 | 65 | 1.26 | HOSE-CV4-1250-3 | 0.42 | $66.00 | 2 | Add to Cart |
| 1 1/4 | 1.64 | 12 | 65 | 5.04 | HOSE-CV4-1250-12 | 0.42 | $264.00 | 2 | Add to Cart |
| 1 3/8 | 1.77 | 3 | 65 | 1.41 | HOSE-CV4-1375-3 | 0.47 | $72.45 | 2 | Add to Cart |
| 1 3/8 | 1.77 | 12 | 65 | 8.40 | HOSE-CV4-1375-12 | 0.47 | $289.80 | 2 | Add to Cart |
| 1 1/2 | 1.89 | 3 | 60 | 1.59 | HOSE-CV4-1500-3 | 0.53 | $75.30 | 2 | Add to Cart |
| 1 1/2 | 1.89 | 12 | 60 | 6.36 | HOSE-CV4-1500-12 | 0.53 | $301.20 | 2 | Add to Cart |
| 1 5/8 | 2.02 | 3 | 60 | 1.74 | HOSE-CV4-1625-3 | 0.58 | $81.69 | 2 | Add to Cart |
| 1 5/8 | 2.02 | 12 | 60 | 6.96 | HOSE-CV4-1625-12 | 0.58 | $326.74 | 2 | Add to Cart |
| 1 3/4 | 2.14 | 3 | 55 | 1.89 | HOSE-CV4-1750-3 | 0.63 | $88.05 | 2 | Add to Cart |
| 1 3/4 | 2.14 | 12 | 55 | 7.56 | HOSE-CV4-1750-12 | 0.63 | $352.20 | 2 | Add to Cart |
| 2 | 2.37 | 3 | 50 | 2.22 | HOSE-CV4-2000-3 | 0.74 | $97.73 | 2 | Add to Cart |
| 2 | 2.37 | 12 | 50 | 8.88 | HOSE-CV4-2000-12 | 0.74 | $390.90 | 2 | Add to Cart |
| 2 1/4 | 2.64 | 3 | 40 | 2.40 | HOSE-CV4-2250-3 | 0.80 | $105.45 | 2 | Add to Cart |
| 2 1/4 | 2.64 | 12 | 40 | 9.60 | HOSE-CV4-2250-12 | 0.80 | $421.80 | 2 | Add to Cart |
| 2 3/8 | 2.77 | 3 | 40 | 2.58 | HOSE-CV4-2375-3 | 0.86 | $111.78 | 2 | Add to Cart |
| 2 3/8 | 2.77 | 12 | 40 | 10.32 | HOSE-CV4-2375-12 | 0.86 | $447.12 | 2 | Add to Cart |
| 2 1/2 | 2.89 | 3 | 35 | 2.76 | HOSE-CV4-2500-3 | 0.92 | $115.20 | 2 | Add to Cart |
| 2 1/2 | 2.89 | 12 | 35 | 11.04 | HOSE-CV4-2500-12 | 0.92 | $460.80 | 2 | Add to Cart |
| 2 5/8 | 3.00 | 3 | 35 | 2.85 | HOSE-CV4-2625-3 | 0.95 | $119.37 | 2 | Add to Cart |
| 2 5/8 | 3.00 | 12 | 35 | 11.40 | HOSE-CV4-2625-12 | 0.95 | $477.80 | 2 | Add to Cart |
| 2 3/4 | 3.14 | 3 | 30 | 2.94 | HOSE-CV4-2750-3 | 0.98 | $123.38 | 2 | Add to Cart |
| 2 3/4 | 3.14 | 12 | 30 | 11.76 | HOSE-CV4-2750-12 | 0.98 | $493.50 | 2 | Add to Cart |
| 3 | 3.39 | 3 | 25 | 3.12 | HOSE-CV4-3000-3 | 1.04 | $133.50 | 2 | Add to Cart |
| 3 | 3.39 | 12 | 25 | 12.48 | HOSE-CV4-3000-12 | 1.04 | $534.00 | 2 | Add to Cart |
| 3 1/2 | 3.89 | 3 | 15 | 3.45 | HOSE-CV4-3500-3 | 1.15 | $165.53 | 2 | Add to Cart |
| 3 1/2 | 3.89 | 12 | 15 | 13.80 | HOSE-CV4-3500-12 | 1.15 | $662.10 | 2 | Add to Cart |
| 4 | 4.37 | 3 | 10 | 3.63 | HOSE-CV4-4000-3 | 1.21 | $179.18 | 2 | Add to Cart |
| 4 | 4.37 | 12 | 10 | 14.52 | HOSE-CV4-4000-12 | 1.21 | $716.70 | 2 | Add to Cart |
| 4 1/2 | 4.89 | 3 | 10 | 3.81 | HOSE-CV4-4500-3 | 1.27 | $210.79 | 2 | Add to Cart |
| 4 1/2 | 4.89 | 12 | 10 | 14.52 | HOSE-CV4-4500-12 | 1.21 | $843.18 | 2 | Add to Cart |
| 5 | 5.37 | 3 | 10 | 3.99 | HOSE-CV4-5000-3 | 1.33 | $242.55 | 2 | Add to Cart |
| 5 | 5.37 | 12 | 10 | 15.96 | HOSE-CV4-5000-12 | 1.33 | $970.20 | 2 | Add to Cart |
| 6 | 6.39 | 3 | 8 | 5.76 | HOSE-CV4-6000-3 | 1.92 | $405.23 | 2 | Add to Cart |
| 6 | 6.39 | 12 | 8 | 23.04 | HOSE-CV4-6000-12 | 1.92 | $1,620.90 | 2 | Add to Cart |
