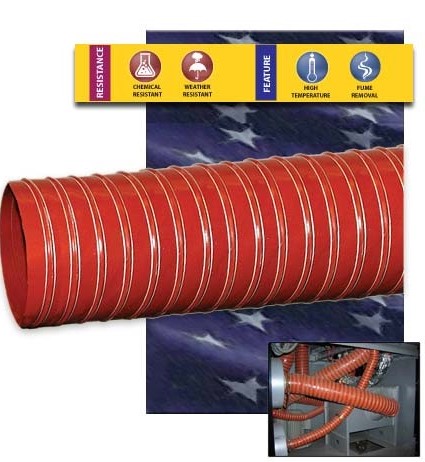

Overview: The Model FD1 is a top quality silicone duct hose. It consists of a two-ply fiberglass, and is coated with silicone to give a rating of 550 deg F, with a smooth bore. Available in other lengths besides the 12ft long standards shown below that can be purchased directly. Normally clamped to fittings or equipment with right handed bridge clamps. The FD1 is also available with a bonded PTFE liner for chemical resistance if needed, or with a Nomex cover for continuous flexing. 3/4" to 12" diameters.
Features:
- High Temperature Rating of 550F
- Smooth Bore Allows for Maximum Air Flow
- UV and Weather Resistant
Applications:
- High Temperature Air Flow and Fume Removal, where Movements are Infrequent
Temperature: -75F to 550F, Intermittent to 600F
scroll to see more products
|
Dia (in)
|
Lngth-ft (ft)
|
Pres (psi)
|
Vac (in Hg)
|
Bend R (in)
|
Wt (lbs)
|
Product No |
Wt/Ft (lbs)
|
Price ($)
|
Lead Time (days)
|
|
|---|---|---|---|---|---|---|---|---|---|---|
| 3/4 | 12 | 30.0 | 29.0 | 1 | 2 | HOSE-FD1-12-0075 | 0.08 | $122.00 | 4 | Add to Cart |
| 1 | 12 | 30.0 | 29.0 | 1-1/4 | 2 | HOSE-FD1-12-0100 | 0.12 | $153.00 | 4 | Add to Cart |
| 1 1/4 | 12 | 30.0 | 29.0 | 1-1/4 | 3 | HOSE-FD1-12-0125 | 0.19 | $158.00 | 4 | Add to Cart |
| 1 1/2 | 12 | 30.0 | 29.0 | 1-3/4 | 3 | HOSE-FD1-12-0150 | 0.22 | $178.00 | 4 | Add to Cart |
| 1 3/4 | 12 | 30.0 | 29.0 | 2 | 3 | HOSE-FD1-12-0175 | 0.21 | $184.00 | 4 | Add to Cart |
| 2 | 12 | 30.0 | 29.0 | 2 | 3 | HOSE-FD1-12-0200 | 0.25 | $189.00 | 4 | Add to Cart |
| 2 1/2 | 12 | 30.0 | 29.0 | 2 1/2 | 4 | HOSE-FD1-12-0250 | 0.40 | $233.00 | 4 | Add to Cart |
| 3 | 12 | 30.0 | 29.0 | 2-1/2 | 4 | HOSE-FD1-12-0300 | 0.33 | $244.00 | 4 | Add to Cart |
| 3 1/2 | 12 | 30.0 | 29.0 | 2-1/2 | 5 | HOSE-FD1-12-0350 | 0.40 | $281.00 | 4 | Add to Cart |
| 4 | 12 | 30.0 | 27.0 | 3 | 6 | HOSE-FD1-12-0400 | 0.48 | $289.00 | 4 | Add to Cart |
| 5 | 12 | 30.0 | 14.0 | 3-1/2 | 8 | HOSE-FD1-12-0500 | 0.59 | $345.00 | 4 | Add to Cart |
| 6 | 12 | 19.0 | 9.0 | 4 | 8 | HOSE-FD1-12-0600 | 0.62 | $398.00 | 4 | Add to Cart |
| 7 | 12 | 14.0 | 9.0 | 4 | 10 | HOSE-FD1-12-0700 | 0.79 | $457.00 | 4 | Add to Cart |
| 8 | 12 | 14.0 | 9.0 | 4 | 10 | HOSE-FD1-12-0800 | 0.79 | $520.00 | 14 | Add to Cart |
| 10 | 12 | 11.0 | 1.0 | 5 | 12 | HOSE-FD1-12-1000 | 0.98 | $627.00 | 14 | Add to Cart |
| 12 | 12 | 9.4 | 0.6 | 5 | 15 | HOSE-FD1-12-1200 | 1.20 | $780.00 | 14 | Add to Cart |
