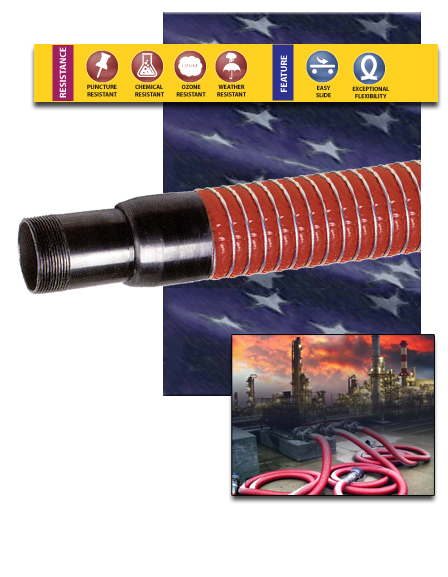

Overview: The Model MC2 composite special chemical hose is designed for highly aggressive media in liquid transfer in many applications.
It is constructed with a PTFE inner liner and multiple plies of polypropylene films and polyester vapor barriers, which lead to "fail safe" safety. The multiple layers of construction require a surpentine path for liquid to leak, preventing sudden catastrophic failure. Special crimped fittings also result in leak free assemblies every time. The MC2 comes standard with a stainless steel inner wire, and galvanized steel outer wire. Variations are available with stainless steel inner and outer wires.
Features:
- Broad Range of Chemical Resistance
- Lightweight, Flexible, and Easy to Handle.
- Fail Safe Design
Applications:
- In-Plant Liquid Transfer
- Tank Truck Delivery
- Rail Car Loading
- Broad Range of Chemical Transfer where Flexibility, Light Weight, and Safe Design Needed
Temperature: -40F to 250F
Price & Purchase Configurator not available
scroll to see more products
|
Dia (in)
|
Pres (psi)
|
Bend R (in)
|
Wt/Ft (lbs)
|
Lead Time (days)
|
|---|---|---|---|---|
| 1 | 250 | 4.1 | 0.6 | 10 |
| 1 1/2 | 250 | 5.9 | 0.8 | 10 |
| 2 | 250 | 7.8 | 1.6 | 10 |
| 3 | 250 | 11.1 | 2.4 | 10 |
| 4 | 250 | 14.2 | 3.2 | 10 |
