Overview: The Model MP1 composite petroleum hose is designed for the transfer of a wide range of petroleum products. This premium hose is designed for full suction, and is very flexible and easy to handle.

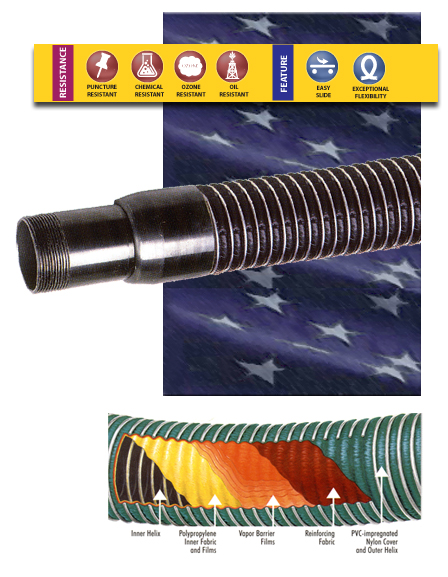

It is constructed with multiple plies of polypropylene films and polyester vapor barriers, which lead to "fail safe" safety. The multiple layers of construction require a surpentine path for liquid to leak, preventing sudden catastrophic failure. Special crimped fittings also result in leak free assemblies every time.
The MP1 comes standard with a galvanized steel inner wire, and galvanized steel outer wire. 1" to 4" diameters.
Features:
- Lightweight, Flexible, and Easy to Handle.
- Fail Safe Design
Temperature: -40F to 212F (or 300F, contact factory)
Applications:
- In-Plant Liquid Transfer
- Tank Truck Delivery
- Rail Car Loading
- Broad Range of Petroleum Transfer where Flexibility, Light Weight, and Safe Design Needed
Price &
Purchase
Purchase
Choose details to price,
then add to your cart!
then add to your cart!
scroll to see more products
|
Dia (in)
|
Pres (psi)
|
Bend R (in)
|
Wt/Ft (lbs)
|
Lead Time (days)
|
|---|---|---|---|---|
| 1 | 250 | 4.1 | 0.60 | 10 |
| 1 1/2 | 250 | 5:1 | 0.85 | 10 |
| 2 | 250 | 6.1 | 1.60 | 10 |
| 3 | 250 | 8.2 | 2.40 | 10 |
| 4 | 250 | 14.0 | 3.20 | 10 |
