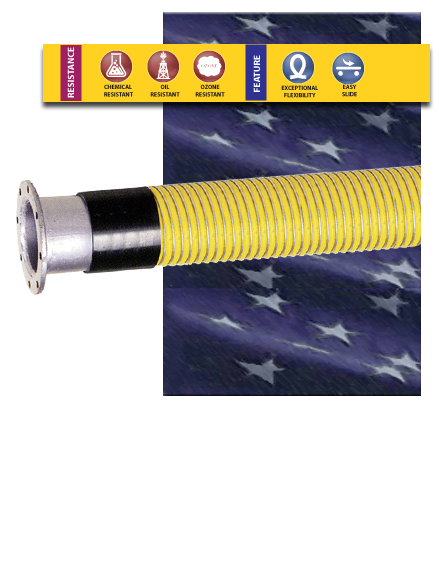

Overview: The Model MV1 composite vapor recovery hose. It is constructed with multiple plies of polypropylene films and polyester vapor barriers, which lead to "fail safe" safety. The multiple layers of construction require a surpentine path for liquid to leak, preventing sudden catastrophic failure. Special crimped fittings also result in leak free assemblies every time. 1" to 8" diameters
Features:
- Lightweight, Flexible, and Easy to Handle.
- Fail Safe Design
- Meets CFR33-154 Requirements
Applications:
- Petroleum and Petrochemical Vapor Recovery Systems
- Ship-to-Shore, Bottom Loading, and Tank Truck Vapor Recovery
Temperature: -40F to 212F
Price &
Purchase
Purchase
Choose details to price,
then add to your cart!
then add to your cart!
scroll to see more products
|
Dia (in)
|
Pres (psi)
|
Bend R (in)
|
Wt/Ft (lbs)
|
Lead Time (days)
|
|---|---|---|---|---|
| 1 | 150 | 4.0 | 0.54 | 10 |
| 1 1/2 | 150 | 5.0 | 0.74 | 10 |
| 2 | 150 | 6.0 | 1.12 | 10 |
| 3 | 150 | 7.9 | 1.82 | 10 |
| 4 | 150 | 11.9 | 2.62 | 10 |
