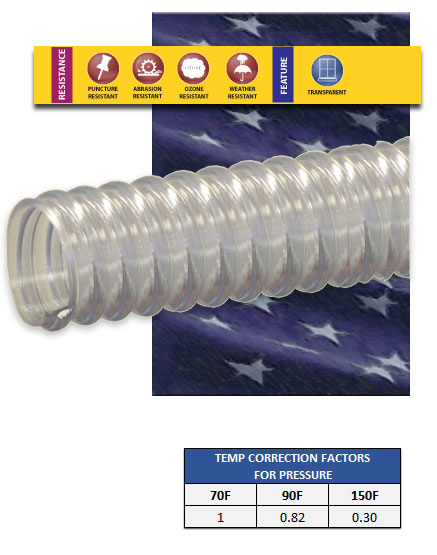

Overview: The Model PH2 is a clear PVC material handling hose that is made for transferring bulk handling and conveying dry materials.
This hose is also available with a grounding wire, or with a polyurethane lining as options. Commonly provided with cam and groove, flange, and various sanitary fittings. 1" to 8" diameters.
Features:
- Quiet Operation
- Visual Confirmation of Flow
- Smooth Bore Interior
- FDA, USDA, and 3-A Approved
Applications:
- Transfer of Dry Materials such as Resin, Pellets, Powders
- Dry, Semi-Solid, or Liquid Food Products
Temperature: 15F to 150F
Price &
Purchase
Purchase
Choose details to price,
then add to your cart!
then add to your cart!
scroll to see more products
|
Dia (in)
|
Outer Dia (in)
|
Pres (psi)
|
Bend R (in)
|
Wt/Ft (lbs)
|
Lead Time (days)
|
|---|---|---|---|---|---|
| 1 | 1 1/4 | 55 | 2 | 0.21 | 2 |
| 1 1/4 | 1 5/8 | 50 | 2 | 0.28 | 2 |
| 1 1/2 | 1 7/8 | 50 | 3 | 0.35 | 2 |
| 2 | 2 7/16 | 40 | 4 | 0.56 | 2 |
| 2 1/2 | 3 | 40 | 5 | 0.77 | 2 |
| 3 | 3 5/8 | 40 | 6 | 1.10 | 2 |
| 4 | 4 3/4 | 35 | 10 | 1.80 | 2 |
| 5 | 5 3/4 | 35 | 16 | 2.34 | 2 |
| 6 | 6 3/4 | 30 | 18 | 3.70 | 2 |
| 8 | 8 3/4 | 20 | 36 | 5.53 | 2 |
