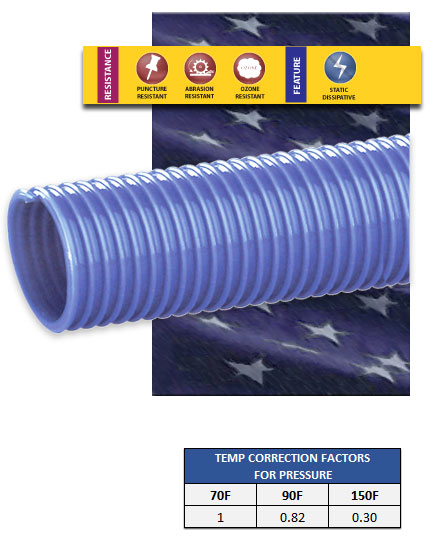

Overview: Model PH5 is a premium quality polyurethane lined dry material handling hose that is reinforced with a ridgid PVC helix. The extra thick polyurethane liner is ideal for when high abrasion resistance is demanded, and flexiblility is still important. It is made with static dissipating materials. 2" to 6" diameters.
Features:
- Highly Abrasive Resistant
- Quiet Operation
- Static Dissipating
- Good in Sub-Zero Temperatures
Applications:
- Handling Abrasives such as Grains, Pellets, Gravel, Cement, Dry Fertilizer, Wood Chips, Plastics, Coal Dust, and Crushed Rock
- Vacuum Trucks
Temperature: -40F to 150F
scroll to see more products
|
Dia (in)
|
Outer Dia (in)
|
Pres (psi)
|
Vac (in Hg)
|
Bend R (in)
|
Note |
Wt/Ft (lbs)
|
Lead Time (days)
|
|---|---|---|---|---|---|---|---|
| 2 | 2.43 | 40 | 30 | 4 | 1.2MM POLYURETHANE LINER | 0.60 | 4 |
| 3 | 3.70 | 40 | 30 | 6 | 1.8MM POLYURETHANE LINER | 1.30 | 4 |
| 4 | 4.80 | 35 | 30 | 10 | 2.0MM POLYURETHANE LINER | 2.02 | 4 |
| 5 | 5.80 | 35 | 28 | 15 | 2.0MM POLYURETHANE LINER | 2.60 | 5 |
| 6 | 6.87 | 30 | 28 | 18 | 2.3MM POLYURETHANE LINER | 3.90 | 4 |
