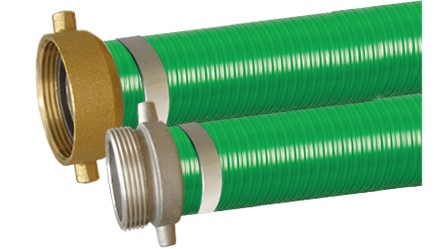

Overview The Model PN1 is an economical PVC suction hose that is lighter than similar, more expensive rubber hoses.
Here it is made available for quick purchase with popular NPSH MxF (male x female swivel) thread fittings for 1-1/2" to 6" diameters in 20ft lengths. Also avaialble here with alumuminum CxE cam & groove fittings.
Features
Suction Ready Lightweight Economical Chemically Resistant Well Suited for Outdoor Service except severe cold Smooth Bore
Applications
Industrial and Construction Liquid and Material Service where Mild Chemical Resistance is Required Pump Suction Sevice
Temperature 15F to 150F
scroll to see more products
Dia (in)
Outer Dia (in)
Lngth-ft (ft)
Fittings
Pres (psi)
Vac (in Hg)
Bend R (in)
Wt (lbs)
Product No
Wt/Ft (lbs)
Price ($)
Lead Time (days)
1 1/2 1.82 20 NPSH M X F SW 90 28 5 16 HOSE-PN1AS20MF0150 0.48 $87.20 4
Add to Cart
2 2.36 20 NPSH M X F SW 70 28 6 19 HOSE-PN1AS20MF0200 0.67 $106.20 4
Add to Cart
3 3.44 20 NPSH M X F SW 55 28 9 32 HOSE-PN1AS20MF0300 1.25 $200.00 4
Add to Cart
4 4.52 20 NPSH M X F SW 50 28 13 48 HOSE-PN1AS20MF0400 1.90 $335.80 4
Add to Cart
