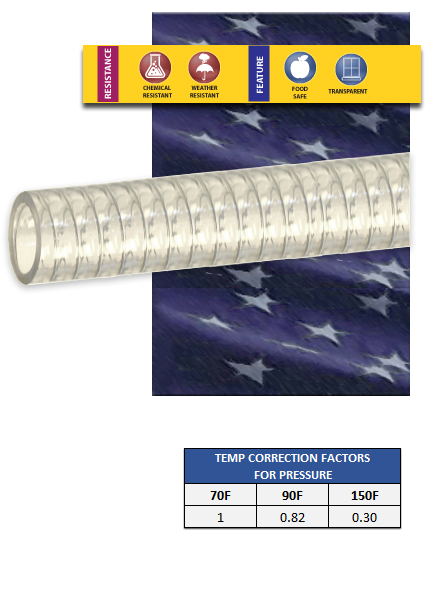

PT5 PVC WIRE REINFORCED VACUUM HOSE

Hose By Material

Hose By Application

Select a Hose

Accessories

Overview: The Model PT5 is a clear PVC polyester wire reinforced hose tubing with a smooth interior and exterior for vacuum service and good flexibility. Comes only in standard coil lengths. 3/8" to 2" diameters.

Features:

  • Smooth Finish Provides Excellent Flow Characteristics
  • Does not Impart any Taste or Odor
  • Lightweight and yet Tough
  • Easily Flushed and Cleaned
  • FDA & USDA Food grade

Applications:

  • Wide Variety of Weak Chemicals and Gases Requiring Suction Service
  • Food Products

Temperature25F to 150F

PT5 Wire Reinforced PVC Tubing Hose

scroll to see more products
Dia
(in)
Outer Dia
(in)
Lngth-ft
(ft)
Pres
(psi)
Vac
(in Hg)
Bend R
(in)
Wt/Ft
(lbs)
Lead Time
(days)
1/41/2100100280.600.072
3/85/8100100280.750.102
1/213/16100100281.000.132
5/81100100281.180.172
3/41 1/8100100281.250.242
11 3/810075281.650.342
1 1/41 3/45075262.000.502
1 1/225050262.500.552
22 1/25050263.230.842
