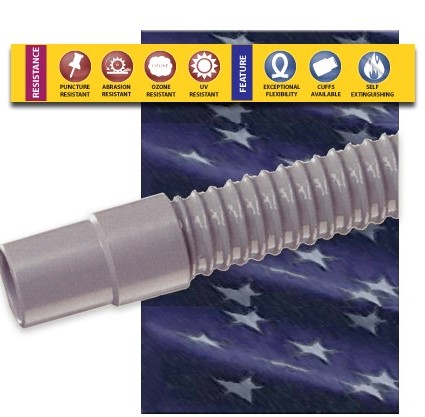

Overview The Model PV1 Vacuum Hose is a vacuum PVC hose that has a high strength fiber reinforced PVC cover bonded to a coated spring steel helix, offering excellent flexibility for ease of use.Usually used with screw on vinyl cuffs. Available in 50 foot lengths that can be directly purchased below. Note a full vacuum cannot be achieved if operating temperature exceeds 72F. 3/4" to 2" diameters.
Features
Good Strength and Wear Resistant Screw-on Cuffs for Clean Ends
Applications
Wide range of Air Handling and Vacuum Jobs
Temperature -10F to 160F
scroll to see more products
Dia (in)
Lngth-ft (ft)
Pres (psi)
Vac (in Hg)
Bend R (in)
Wt (lbs)
Product No
Price ($)
Lead Time (days)
1 1/4 50 15 29 1.250 11 HOSE-PV1-50-0125 $138.00 4
Add to Cart
1 1/2 50 15 29 1.625 13 HOSE-PV1-50-0150 $157.00 4
Add to Cart
2 50 15 29 2.300 19 HOSE-PV1-50-0200 $219.00 4
Add to Cart
