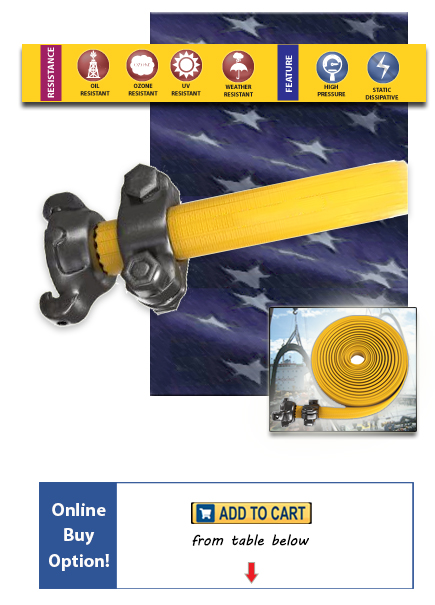

Overview: The RA5-AS is a layflat hose assembly recommended for compressed air, and also a wide range of liquids from sewage to snow production.
A very tough and lightweight hose that coils flat for compact storage, it is made from a blend of nitrile rubber with added UV barrier. This field-proven hose is of the highest quality.
Available as assemblies in 50ft or 100ft with Chicago claw type fittings in 3/4" to 3" diameters.
Features:
- Lays flat for Easy Storage and Transport
- Higher Pressure and Temperature Ratings
- Very Tough and Lightweight
- Added UV Barrier
- High Quality Materials & Long Life Expectancy
Applications:
- Compressed Air
- Liquids, including Sewage & Snow Making
Temperature: -40F to 230F
Price & Purchase Configurator not available
scroll to see more products
|
Dia (in)
|
Lngth-ft (ft)
|
Pres (psi)
|
Wt (lbs)
|
Product No |
Lead Time (days)
|
|---|---|---|---|---|---|
| 3/4 | 50 | 725 | 8 | HOSE-RA5AS050CC0075 | 3 |
| 3/4 | 100 | 725 | 15 | HOSE-RA5AS100CC0075 | 3 |
| 1 | 50 | 725 | 10 | HOSE-RA5AS050CC0100 | 3 |
| 1 | 100 | 725 | 20 | HOSE-RA5AS100CC0100 | 3 |
| 1 1/2 | 100 | 615 | 27 | HOSE-RA5AS100CC0150 | 3 |
| 2 | 100 | 435 | 37 | HOSE-RA5AS100CC0200 | 3 |
| 2 1/2 | 100 | 360 | 50 | HOSE-RA5AS100CC0250 | 3 |
| 3 | 100 | 360 | 64 | HOSE-RA5AS100CC0300 | 3 |
