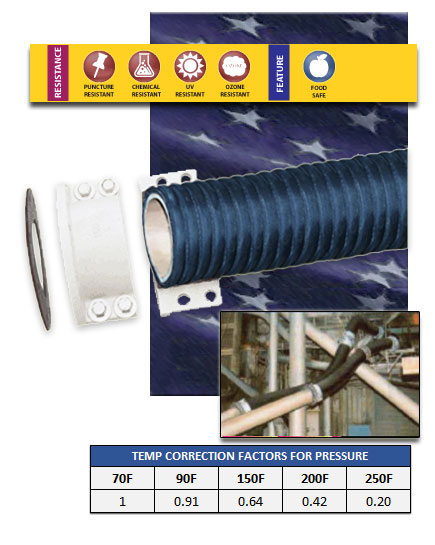

Overview: The Model RH2 is a versatile and rugged rubber pipe hose that can be cut to fit. It is used with our split high grade aluminum 150# flanges, sold separately, which bolt together and conform to the outer convolutions for a secure field fit. Other elastomers are available, including those for food service with an FDA tan gum rubber liner, and with a red gum rubber liner for extreme abrasive service.
Features:
- A thick Rubber SBR Blend Tube
- High Abrasion Resistance
- Can be Field Cut to Length and Used with Special Split Flanges
Applications:
- Abrasive Slurries and Dry Material Handling
- Alternative to Steel Pipe to Absorb Vibration & Noise, and Thermal Expansion
Temperature: -25F to 180F
scroll to see more products
|
Dia (in)
|
Outer Dia (in)
|
Pres (psi)
|
Vac (in Hg)
|
Bend R (in)
|
Wt/Ft (lbs)
|
|---|---|---|---|---|---|
| 2 | 3.11 | 150 | 25 | 12 | 3 |
| 3 | 4.65 | 150 | 25 | 14 | 5 |
| 4 | 5.38 | 150 | 25 | 20 | 6 |
| 5 | 6.58 | 150 | 25 | 26 | 8 |
| 6 | 7.73 | 150 | 25 | 30 | 10 |
| 8 | 10.02 | 150 | 25 | 69 | 17 |
| 10 | 11.89 | 150 | 25 | 79 | 18 |
| 12 | 13.74 | 150 | 25 | 99 | 20 |
