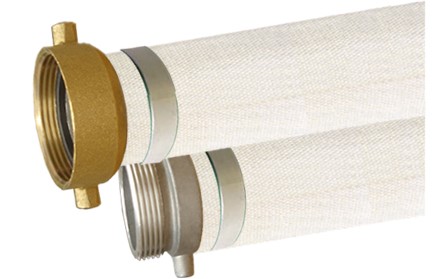

Overview The Model RL1 Mill Discharge Hose is a general purpose, single jacket, lay-flat discharge hose with a rubber SBR rubber tube. It has a single jacket all polyester cover that will not absorb water, and is ready for rough treatment.
Here it is made available for quick purchase with popular NPSH MxF (male x female) thread fittings for 1 1/2" to 6" diameters in 50ft lengths. Also avaialble here with alumuminum CxE cam & groove fittings.
Features
Stores Easily as Layflat Hose SBR Rubber Tube for Age Resistance Good Weather & UV Resistance Good Pressure Ratings Will Not Get Stiff in in Cold Weather Compared to PVC Lay-Flat Hoses
Applications
Outdoor Water Applications where Compact Storage is Required
Temperature -25F to 185F
scroll to see more products
Dia (in)
Lngth-ft (ft)
Fittings
Pres (psi)
Wt (lbs)
Product No
Wt/Ft (lbs)
Price ($)
Lead Time (days)
1 1/2 50 NPSH M X F SW 150 13 HOSE-RL1AS50MF0150 0.20 $122.20 4
Add to Cart
2 50 NPSH M X F SW 150 18 HOSE-RL1AS50MF0200 0.27 $146.80 4
Add to Cart
2 1/2 50 NPSH M X F SW 150 23 HOSE-RL1AS50MF0250 0.38 $227.20 4
Add to Cart
3 50 NPSH M X F SW 150 25 HOSE-RL1AS50MF0300 0.43 $251.10 4
Add to Cart
4 50 NPSH M X F SW 150 36 HOSE-RL1AS50MF0400 0.65 $415.80 4
Add to Cart
