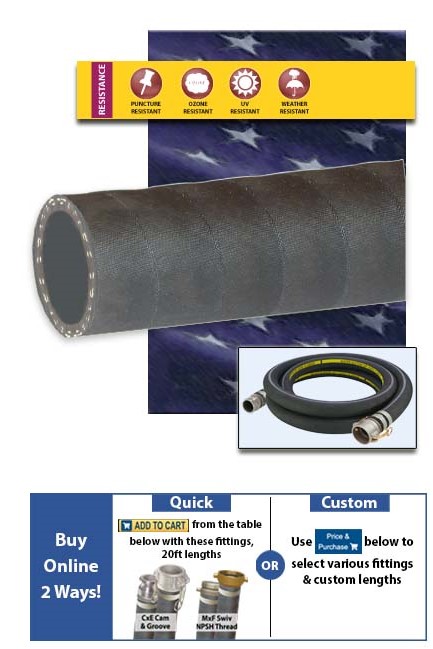

Overview: The Model RN1 is a quality EPDM rubber suction hose designed for rugged industrial and construction applications requiring endurance.
The most common sizes, fittings, and length combinations can be purchased below: 1-1/2" - 4" sizes in 20ft lengths with aluminum cam & groove fittings or aluminum M x F with brass swivel NPSH threads. Other fittings, and any lengths, for up to 6" sizes can be configured and purchased with our Price & Purchase feature below.
Features:
- Rugged Design that is Kink Resistant
- Abrasion Resistant
- Good in any Weather
- Good Pressure Ratings
Applications:
- Liquid Suction Applications
- For for Water and Mild Chemicals, Slurries, Brine,Detergents, Mild Acids, Alkalis, Glycols, Among Many Others
Temperature: -25F to 185F
Price &
Purchase
Purchase
Choose details to price,
then add to your cart!
then add to your cart!
scroll to see more products
|
Dia (in)
|
Outer Dia (in)
|
Lngth-ft (ft)
|
Fittings |
Pres (psi)
|
Vac (in Hg)
|
Bend R (in)
|
Wt (lbs)
|
Product No |
Wt/Ft (lbs)
|
Price ($)
|
Lead Time (days)
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 1-7/8 | 20 | CAM & GRV M X F AL | 150.0 | 30 | 7 | 18.75 | HOSE-RN1AS20CE0150 | 0.85 | $194.80 | 7 | Add to Cart |
| 1 1/2 | 1 7/8 | 20 | NPSH M X F SW | 184.5 | 30 | 7 | 19.00 | HOSE-RN1AS20MF0150 | 0.85 | $184.50 | 7 | Add to Cart |
| 2 | 2-7/16 | 20 | CAM & GRV M X F AL | 150.0 | 30 | 10 | 23.70 | HOSE-RN1AS20CE0200 | 1.06 | $225.36 | 7 | Add to Cart |
| 2 | 2-7/16 | 20 | NPSH M X F SW | 150.0 | 30 | 10 | 23.20 | HOSE-RN1AS20MF0200 | 1.06 | $218.50 | 7 | Add to Cart |
| 2 1/2 | 2-7/8 | 20 | CAM & GRV M X F AL | 150.0 | 30 | 11 | 29.75 | HOSE-RN1AS20CE0250 | 1.31 | $303.46 | 7 | Add to Cart |
| 2 1/2 | 2-7/8 | 20 | NPSH M X F SW | 150.0 | 30 | 11 | 29.20 | HOSE-RN1AS20MF0250 | 1.31 | $294.94 | 7 | Add to Cart |
| 3 | 3-29/64 | 20 | CAM & GRV M X F AL | 150.0 | 30 | 12 | 38.85 | HOSE-RN1AS20CE0300 | 1.73 | $339.84 | 7 | Add to Cart |
| 3 | 3-29/64 | 20 | NPSH M X F SW | 150.0 | 30 | 12 | 37.60 | HOSE-RN1AS20MF0300 | 1.73 | $330.28 | 7 | Add to Cart |
| 4 | 4-1/2 | 20 | CAM & GRV M X F AL | 150.0 | 30 | 14 | 57.25 | HOSE-RN1AS20CE0400 | 2.55 | $530.00 | 7 | Add to Cart |
| 4 | 4-1/2 | 20 | NPSH M X F SW | 150.0 | 30 | 14 | 94.00 | HOSE-RN1AS20MF0400 | 2.55 | $520.10 | 7 | Add to Cart |
| 6 | 6-5/8 | 150.0 | 25 | 19 | 5.90 | $0.00 | 7 | |||||
| 8 | 8-5/8 | 150.0 | 25 | 20 | 9.00 | $0.00 | 7 |
