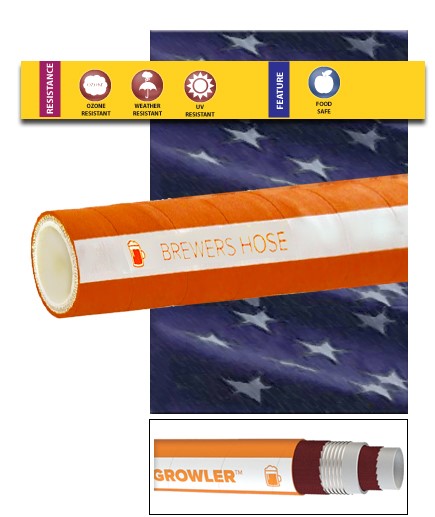

OVERIVEW: The Model RSB Brewery Hose is a heavy duty hose formulated for the suction and transfer of beer, wine, alcohol, and soft drinks. It has a white, smooth bore butyl rubber tube to ensure no effect on odor or taste. Its high working temperatures allows for the sterilization of the hose with steam. White butyl tube and orange EPDM cover. Reinforced with high strength synthetic plies with steel helix.
FEATURES:
- Can be Sterilized with Steam at 230F for 30 Minutes
- Meets FDA 21 part.177.2600(e) for Liquid Foods
- Meets USDA and 3A requirements
- Availble with Factory Coupled Sanitary, or any other Fittings Required
APPLICATIONS:
- Beer
- Wine, Alcohol, and Soft Drinks
TEMPERATURE: -40 to 248F
scroll to see more products
|
Dia (in)
|
Outer Dia (in)
|
Pres (psi)
|
Vac (in Hg)
|
Bend R (in)
|
Wt/Ft (lbs)
|
Lead Time (days)
|
|---|---|---|---|---|---|---|
| 3/4 | 1-14/64 | 150 | 29 | 1.50 | 0.48 | 3 |
| 1 | 1-29/64 | 150 | 29 | 1.75 | 0.58 | 3 |
| 1 1/4 | 1-47/64 | 150 | 29 | 3.00 | 0.74 | 3 |
| 1 1/2 | 1-62/64 | 150 | 29 | 4.00 | 0.97 | 3 |
| 2 | 2-33/64 | 150 | 29 | 6.00 | 1.26 | 3 |
| 2 1/2 | 3-10/64 | 150 | 29 | 7.00 | 1.84 | 3 |
| 3 | 3-45/64 | 150 | 29 | 9.00 | 2.20 | 3 |
| 4 | 4-46/64 | 150 | 29 | 12.00 | 3.06 | 3 |
