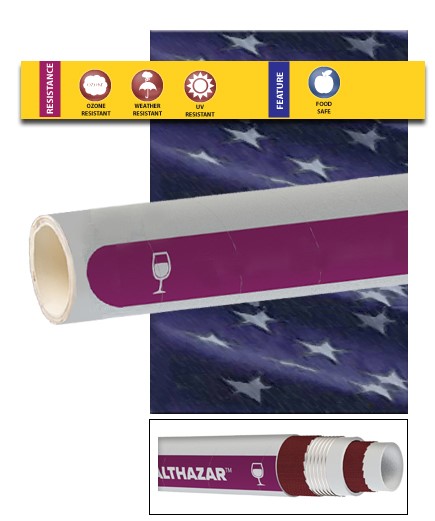

OVERVIEW: The Model RSW Winery Hose is a heavy duty hose formulated for the suction and transfer of wine, fruit juice, and soft drinks. It has a white, smooth bore EPDM rubber tube to ensure no effect on odor or taste. Its high working temperatures allows for the sterilization of the hose with steam. Reinforced with high strength synthetic plies with steel helix.
FEATURES:
- Can be Sterilized with Steam at 230F for 30 Minutes
- Meets FDA 21 part.177.2600(e) for Liquid Foods
- Meets USDA and 3A requirements
- Availble with Factory Coupled Sanitary, or any other Fittings Required
APPLICATIONS:
- Wine
- Fruit Juice, and Soft Drinks
TEMPERATURE: -40 to 248F
scroll to see more products
|
Dia (in)
|
Outer Dia (in)
|
Pres (psi)
|
Vac (in Hg)
|
Bend R (in)
|
Wt/Ft (lbs)
|
Lead Time (days)
|
|---|---|---|---|---|---|---|
| 3/4 | 1-9/64 | 150 | 29 | 1.50 | 0.45 | 3 |
| 1 | 1-24/64 | 150 | 29 | 1.75 | 0.54 | 3 |
| 1 1/4 | 1-46/64 | 150 | 29 | 3.00 | 0.83 | 3 |
| 1 1/2 | 1-62/64 | 150 | 29 | 4.00 | 0.93 | 3 |
| 2 | 2-32/64 | 150 | 29 | 6.00 | 1.26 | 3 |
| 2 1/2 | 3-2/64 | 150 | 29 | 7.00 | 1.75 | 3 |
| 3 | 3-32/64 | 150 | 29 | 9.00 | 2.02 | 3 |
| 4 | 4-36/64 | 150 | 29 | 12.00 | 3.09 | 3 |
