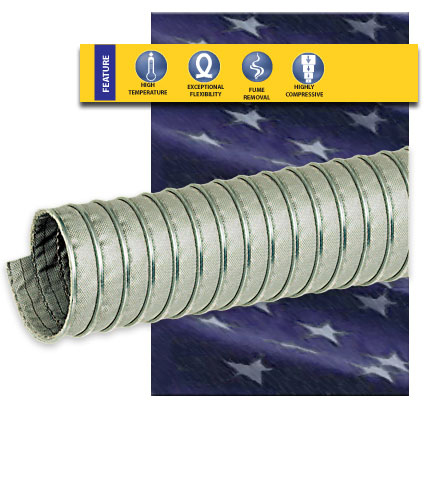

Overview: The TD10HT is a highly flexible duct made of a fine wire reinforced ceramic cloth that is chemically treated and coated. It is of premium quality, and is used for ultra-high temperature fume recovery up to 1500F, and is flame resistant. (Air velocity should be less than 150 ft/sec.) Uses a galvanized steel helix. Standard lengths are 25 feet up to 12 in sizes, and 10 feet up to 24 in sizes.
Features:
- Highest ExtremeTemperature Rating of 1500F
- High Quality
- Highly Flexible
Applications:
- Extremely High Temperature Air Flow and Fume Removal, where High Flexiblility is Needed
Temperature: -200F to 1500F (1830F Intermittent)
Price &
Purchase
Purchase
Choose details to price,
then add to your cart!
then add to your cart!
scroll to see more products
|
Dia (in)
|
Lngth-ft (ft)
|
Pres (psi)
|
Vac (in Hg)
|
Wt (lbs)
|
Product No |
Wt/Ft (lbs)
|
Price ($)
|
Lead Time (days)
|
|
|---|---|---|---|---|---|---|---|---|---|
| 4 | 25 | 3.70 | 2.10 | 39 | HOSE-TD10HT-25-0400 | 1.4 | $6,520.00 | 15 | Add to Cart |
| 5 | 25 | 3.00 | 1.60 | 49 | HOSE-TD10HT-25-0500 | 1.7 | $7,727.00 | 15 | Add to Cart |
| 6 | 25 | 2.30 | 1.20 | 66 | HOSE-TD10HT-25-0600 | 2.3 | $9,296.00 | 15 | Add to Cart |
| 8 | 25 | 1.40 | 0.70 | 95 | HOSE-TD10HT-25-0800 | 3.3 | $10,625.00 | 15 | Add to Cart |
| 10 | 25 | 1.00 | 0.45 | 127 | HOSE-TD10HT-25-1000 | 4.4 | $13,160.00 | 15 | Add to Cart |
| 12 | 25 | 0.75 | 0.30 | 150 | HOSE-TD10HT-25-1200 | 5.2 | $15,936.00 | 15 | Add to Cart |
| 14 | 10 | 0.75 | 0.30 | 152 | HOSE-TD10HT-10-1400 | 5.3 | $7,607.00 | 15 | Add to Cart |
| 16 | 10 | 0.75 | 0.30 | 250 | HOSE-TD10HT-10-1600 | 8.7 | $8,452.00 | 15 | Add to Cart |
| 18 | 10 | 0.75 | 0.30 | 262 | HOSE-TD10HT-10-1800 | 9.1 | $9,297.00 | 15 | Add to Cart |
| 20 | 10 | 0.75 | 0.30 | 285 | HOSE-TD10HT-10-2000 | 9.8 | $10,142.00 | 15 | Add to Cart |
| 22 | 10 | 0.75 | 0.30 | 290 | HOSE-TD10HT-10-2200 | 10.0 | $11,591.00 | 15 | Add to Cart |
| 24 | 10 | 0.75 | 0.30 | 296 | HOSE-TD10HT-10-2400 | 10.3 | $12,750.00 | 15 | Add to Cart |
