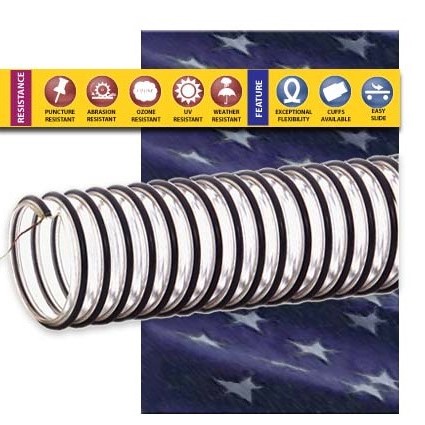

Overview: The Model TD11 is a static dissipative polyurethane hose reinforced with a ridgid external ABS helix and has an embedded copper grounding wire and smooth interior. Uses Left Handed Clamps. Wall thickness is .040" (thru 4") and .045 (5"-8"), and it is manufactured with FDA acceptable materials. Available in 25ft and 50ft lengths that can be purchased directly below. Special lengths are available. 1" to 8" diameters. Also available with 060" wall thickness version.
Features:
- Great Abrasion Resistance, but Remains Flexible
- Smooth Interior
- FDA Food Grade Materials
- Grounding Wire Reduces Static Build-up of Material
- Ridged External Helix provides Easy Dragging and Prevents External Wear
- Allows Visual Flow Confirmation
Applications:
- Powders, Pellets, and other Granular Material
- Food Grade Material
Temperature: -40F to 200F
scroll to see more products
|
Dia (in)
|
Lngth-ft (ft)
|
Pres (psi)
|
Vac (in Hg)
|
Bend R (in)
|
Wt (lbs)
|
Product No |
Price ($)
|
Lead Time (days)
|
|
|---|---|---|---|---|---|---|---|---|---|
| 1 | 25 | 50 | 29 | 1.5 | 5 | HOSE-TD11-25-0100 | $147.00 | 10 | Add to Cart |
| 1 | 50 | 50 | 29 | 1.5 | 9 | HOSE-TD11-50-0100 | $294.00 | 10 | Add to Cart |
| 1 1/4 | 25 | 50 | 29 | 1.9 | 6 | HOSE-TD11-25-0125 | $163.00 | 7 | Add to Cart |
| 1 1/4 | 50 | 50 | 29 | 1.9 | 12 | HOSE-TD11-50-0125 | $327.00 | 7 | Add to Cart |
| 1 1/2 | 25 | 50 | 29 | 2.0 | 7 | HOSE-TD11-25-0150 | $184.00 | 7 | Add to Cart |
| 1 1/2 | 50 | 50 | 29 | 2.0 | 14 | HOSE-TD11-50-0150 | $368.00 | 7 | Add to Cart |
| 2 | 25 | 50 | 29 | 2.5 | 8 | HOSE-TD11-25-0200 | $240.00 | 7 | Add to Cart |
| 2 | 50 | 50 | 29 | 2.5 | 16 | HOSE-TD11-50-0200 | $481.00 | 7 | Add to Cart |
| 2 1/2 | 25 | 35 | 28 | 5.0 | 13 | HOSE-TD11-25-0250 | $400.00 | 10 | Add to Cart |
| 2 1/2 | 50 | 35 | 28 | 5.0 | 25 | HOSE-TD11-50-0250 | $800.00 | 10 | Add to Cart |
| 3 | 25 | 32 | 26 | 5.5 | 14 | HOSE-TD11-25-0300 | $506.00 | 7 | Add to Cart |
| 3 | 50 | 32 | 26 | 5.5 | 28 | HOSE-TD11-50-0300 | $1,014.00 | 7 | Add to Cart |
| 4 | 25 | 30 | 22 | 6.0 | 19 | HOSE-TD11-25-0400 | $633.00 | 7 | Add to Cart |
| 4 | 50 | 30 | 22 | 6.0 | 38 | HOSE-TD11-50-0400 | $1,267.00 | 7 | Add to Cart |
| 5 | 25 | 28 | 18 | 7.0 | 25 | HOSE-TD11-25-0500 | $854.00 | 10 | Add to Cart |
| 5 | 50 | 28 | 18 | 7.0 | 50 | HOSE-TD11-50-0500 | $1,709.00 | 10 | Add to Cart |
| 6 | 25 | 26 | 12 | 7.8 | 32 | HOSE-TD11-25-0600 | $1,012.00 | 7 | Add to Cart |
| 6 | 50 | 26 | 12 | 7.8 | 64 | HOSE-TD11-50-0600 | $2,024.00 | 7 | Add to Cart |
| 7 | 25 | 25 | 11 | 10.0 | 38 | HOSE-TD11-25-0700 | $1,371.00 | 10 | Add to Cart |
| 7 | 50 | 25 | 11 | 10.0 | 75 | HOSE-TD11-50-0700 | $2,742.00 | 10 | Add to Cart |
| 8 | 25 | 24 | 10 | 12.0 | 44 | HOSE-TD11-25-0800 | $1,555.00 | 10 | Add to Cart |
| 8 | 50 | 24 | 10 | 12.0 | 88 | HOSE-TD11-50-0800 | $3,111.00 | 10 | Add to Cart |
