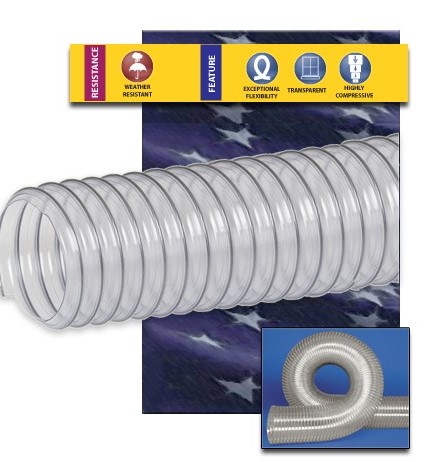

Overview: The TD12 is a lighter weight, .020" thick PVC hose reinforced with a spring steel wire helix. The default clear version is manufactured with FDA acceptable materials, and the alternate blue version is flame retardant. Standard lengths 25 and 50ft which can be purchased directly below, but any other length is available. 1-1/4" to 18" diameters standard, custom to 24".
Features:
- Great Flexibility and Compressibility
- Relatively Economical
- FDA Food Grade Material
- Blue Version is UL94V-0 Flame Retardant
Applications:
- Economical Choice for Ventilation and Fume Removal
- Can be Use in Food Environments
Temperature: 20F to 150F
scroll to see more products
|
Dia (in)
|
Lngth-ft (ft)
|
Pres (psi)
|
Vac (in Hg)
|
Bend R (in)
|
Wt (lbs)
|
Product No |
Price ($)
|
Lead Time (days)
|
|
|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 25 | 25.0 | 29.00 | 1.4 | 5 | HOSE-TD12-25-0150 | $103.00 | 4 | Add to Cart |
| 1 1/2 | 50 | 25.0 | 29.00 | 1.4 | 10 | HOSE-TD12-50-0150 | $205.00 | 4 | Add to Cart |
| 2 | 25 | 19.0 | 29.00 | 2.1 | 6 | HOSE-TD12-25-0200 | $108.00 | 4 | Add to Cart |
| 2 | 50 | 19.0 | 29.00 | 2.1 | 12 | HOSE-TD12-50-0200 | $214.00 | 4 | Add to Cart |
| 2 1/2 | 25 | 14.0 | 19.00 | 2.3 | 7 | HOSE-TD12-25-0250 | $127.00 | 4 | Add to Cart |
| 2 1/2 | 50 | 14.0 | 19.00 | 2.3 | 14 | HOSE-TD12-50-0250 | $253.00 | 4 | Add to Cart |
| 3 | 25 | 12.0 | 11.00 | 2.5 | 10 | HOSE-TD12-25-0300 | $148.00 | 4 | Add to Cart |
| 3 | 50 | 12.0 | 11.00 | 2.5 | 20 | HOSE-TD12-50-0300 | $297.00 | 4 | Add to Cart |
| 4 | 25 | 8.0 | 9.00 | 3.3 | 10 | HOSE-TD12-25-0400 | $175.00 | 4 | Add to Cart |
| 4 | 50 | 8.0 | 9.00 | 3.3 | 20 | HOSE-TD12-50-0400 | $349.00 | 4 | Add to Cart |
| 5 | 25 | 6.5 | 4.70 | 3.9 | 12 | HOSE-TD12-25-0500 | $189.00 | 4 | Add to Cart |
| 5 | 50 | 6.5 | 4.70 | 3.9 | 24 | HOSE-TD12-50-0500 | $377.00 | 4 | Add to Cart |
| 6 | 25 | 5.4 | 2.70 | 4.4 | 14 | HOSE-TD12-25-0600 | $200.00 | 4 | Add to Cart |
| 6 | 50 | 5.4 | 2.70 | 4.4 | 28 | HOSE-TD12-50-0600 | $401.00 | 4 | Add to Cart |
| 8 | 25 | 3.4 | 1.90 | 5.4 | 16 | HOSE-TD12-25-0800 | $281.00 | 4 | Add to Cart |
| 8 | 50 | 3.4 | 1.90 | 6.4 | 32 | HOSE-TD12-50-0800 | $560.00 | 4 | Add to Cart |
| 10 | 25 | 2.7 | 1.00 | 7.2 | 20 | HOSE-TD12-25-1000 | $396.00 | 4 | Add to Cart |
| 10 | 50 | 2.7 | 1.00 | 7.2 | 40 | HOSE-TD12-50-1000 | $791.00 | 4 | Add to Cart |
| 12 | 25 | 2.3 | 0.60 | 8.0 | 24 | HOSE-TD12-25-1200 | $431.00 | 14 | Add to Cart |
| 12 | 50 | 2.3 | 0.60 | 8.0 | 48 | HOSE-TD12-50-1200 | $863.00 | 14 | Add to Cart |
| 14 | 25 | 2.0 | 0.40 | 9.0 | 28 | HOSE-TD12-25-1400 | $497.00 | 14 | Add to Cart |
| 16 | 25 | 1.7 | 0.30 | 10.0 | 33 | HOSE-TD12-25-1600 | $631.00 | 14 | Add to Cart |
| 18 | 25 | 1.4 | 0.17 | 11.0 | 43 | HOSE-TD12-25-1800 | $690.00 | 14 | Add to Cart |
