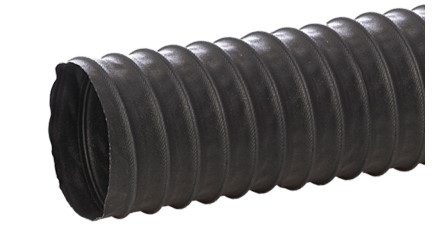

Overview: The Model TD7 is a black 2-ply polyester-neoprene coated duct hose, reinforced with a wire helix.This versatile, flame retardant hose has excellent resistance to many commonly used industrial fluids. Normally clamped to fittings or equipment with bridge clamps.
Standard lengths are 25ft, which can be purchased directly below, but other lengths are available as needed. 2" to 24" diameters standard, custom to 60".
Features:
- Good abrasion and puncture resistance
- UL 94V-0 flame retardant
Applications:
- Industrial Duct, Fume and Exhaust Jobs
- Light Dry Material Handling and Dust
Temperature: -40F to 250F
scroll to see more products
|
Dia (in)
|
Lngth-ft (ft)
|
Pres (psi)
|
Vac (in Hg)
|
Bend R (in)
|
Wt (lbs)
|
Product No |
Price ($)
|
Lead Time (days)
|
|
|---|---|---|---|---|---|---|---|---|---|
| 2 | 25 | 30.0 | 29.00 | 2.0 | 9 | HOSE-TD7-25-0200 | $239.00 | 4 | Add to Cart |
| 2 1/2 | 25 | 30.0 | 29.00 | 1.8 | 10 | HOSE-TD7-25-0250 | $255.00 | 4 | Add to Cart |
| 3 | 25 | 30.0 | 29.00 | 2.4 | 11 | HOSE-TD7-25-0300 | $273.00 | 4 | Add to Cart |
| 3 1/2 | 25 | 29.0 | 22.00 | 2.5 | 12 | HOSE-TD7-25-0350 | $294.00 | 4 | Add to Cart |
| 4 | 25 | 30.0 | 29.00 | 3.1 | 14 | HOSE-TD7-25-0400 | $313.00 | 4 | Add to Cart |
| 5 | 25 | 17.0 | 17.00 | 3.5 | 19 | HOSE-TD7-25-0500 | $355.00 | 4 | Add to Cart |
| 6 | 25 | 11.0 | 21.00 | 4.5 | 24 | HOSE-TD7-25-0600 | $380.00 | 4 | Add to Cart |
| 7 | 25 | 8.0 | 14.00 | 5.0 | 25 | HOSE-TD7-25-0700 | $430.00 | 4 | Add to Cart |
| 8 | 25 | 6.5 | 12.00 | 6.0 | 28 | HOSE-TD7-25-0800 | $486.00 | 4 | Add to Cart |
| 10 | 25 | 5.0 | 7.00 | 7.5 | 33 | HOSE-TD7-25-1000 | $608.00 | 4 | Add to Cart |
| 12 | 25 | 4.3 | 4.00 | 8.0 | 38 | HOSE-TD7-25-1200 | $737.00 | 4 | Add to Cart |
| 14 | 25 | 3.6 | 3.70 | 10.0 | 55 | HOSE-TD7-25-1400 | $873.00 | 14 | Add to Cart |
| 16 | 25 | 3.2 | 2.50 | 12.0 | 63 | HOSE-TD7-25-1600 | $1,017.00 | 14 | Add to Cart |
| 18 | 25 | 3.0 | 1.80 | 13.0 | 70 | HOSE-TD7-25-1800 | $1,214.00 | 14 | Add to Cart |
| 20 | 25 | 2.6 | 1.30 | 14.0 | 78 | HOSE-TD7-25-2000 | $1,412.00 | 14 | Add to Cart |
| 22 | 25 | 2.4 | 0.81 | 15.0 | 88 | HOSE-TD7-25-2200 | $1,767.00 | 14 | Add to Cart |
| 24 | 25 | 2.2 | 0.75 | 17.0 | 95 | HOSE-TD7-25-2400 | $1,935.00 | 14 | Add to Cart |
