VD1 SEWN DUCTING HOSE

Hose By Material

Hose By Application

Select a Hose

Accessories

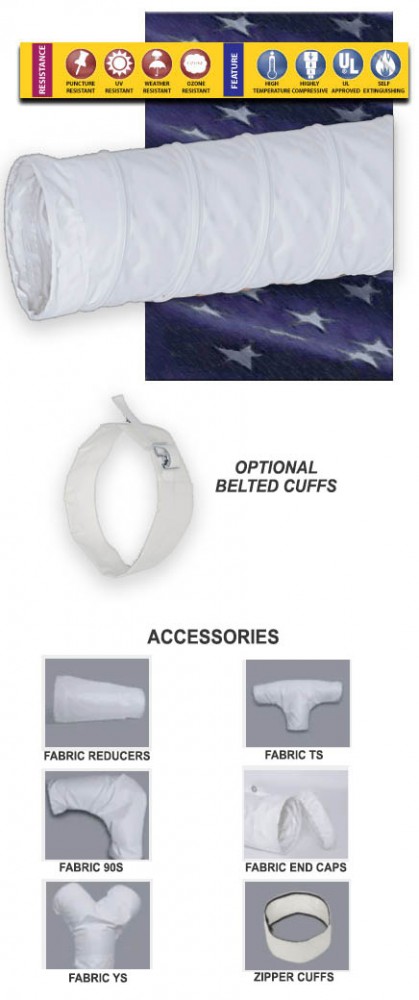

OverviewThe Model VD1 is a lightweight, sewn single-ply PVC vinyl coated polyester duct with a spring steel wire helix & heavy-duty PVC wearstrip. For positive pressure movement of air, dust, or fumes. Not for vacuum. A wire rope ring end finish is standard, which allows quick coupling of the hoses, but belted ends also are available.Standard lengths are 25ft, which can be purchased below, but other lengths are possible. Available in diameters from 12" to 24", and in custom sizes to 36".

Features:

  • Lock stitch construction creates a stronger duct allowing for better performance
  • Great compressibility
  • Heavy-Duty wearstrip offers additional external abrasion & drag resistance
  • Moisture resistant & UV stabilized to prevent mold & mildew
  • Flame Retardant to UL94V-O
  • Dust resistant material creates an easy clean surface
  • PVC coated polyester is superior to PVC laminated polyester products
  • Standard with wire ropes/nylon rings & enclosed belted cuffs each end & storage straps
  • Made in the USA
  • Additional colors available in yellow, blue, green & black

Applications:

  • Fans and Blowers
  • Temporary Air Flow
  • Portable/Temporary Heating/Cooling
  • Dehumidification and Drying Systems

Temperature:  -20F to 180F

VD1 DUCT HOSE
